4-74 Phaser 6180MFP Multifunction Printer Service Manual
General Troubleshooting
Drum Erase Lamp (K)
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light if the Front Door will be opened for prolonged
periods.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Print Cartridges (page 8-11).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Drum Erase Lamp K test: Printer Diag > Engine Diag >
Motor Test > Drum Erase Lamp K.
6. Verify that the Lamp is operating.
7. Press the Stop button to stop the Drum Erase Lamp K test.
8. Remove the paper clip from the Interlock Switch.

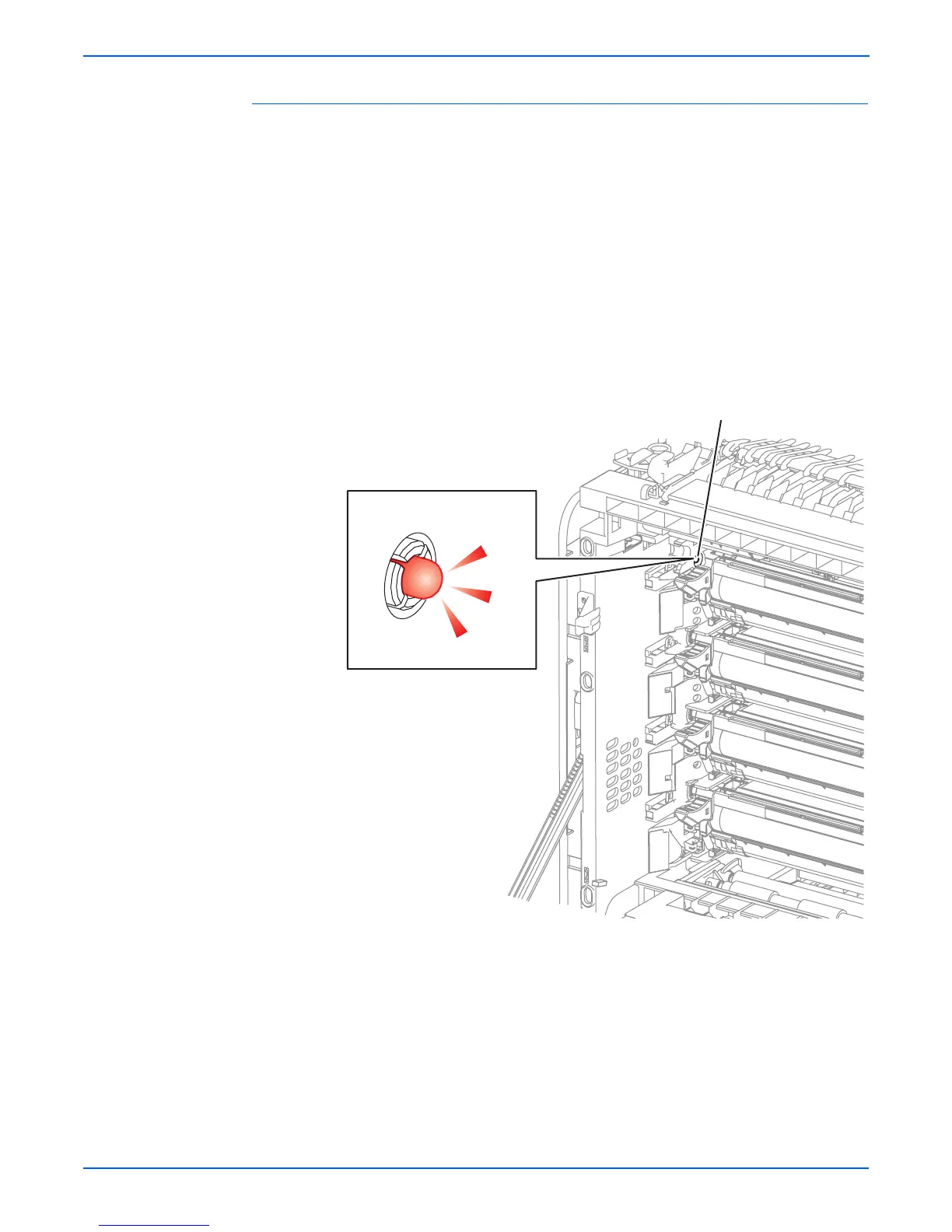

s6180mfp-193
Black Erase Lamp
