Phaser 6180MFP Multifunction Printer Service Manual 4-75
General Troubleshooting
Drum Erase Lamp Y/M/C
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light if the Front Door will be opened for prolonged
periods.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Print Cartridges (page 8-11).
4. Use a paper clip to secure the Interlock Switch.
5. Perform the Drum Erase Lamp YMC test: Printer Diag > Engine Diag >
Motor Test > Drum Erase Lamp YMC.
6. Verify that the Lamps are operating.
7. Press the Stop button to stop the Drum Erase Lamp YMC test.
8. Remove the paper clip from the Interlock Switch.

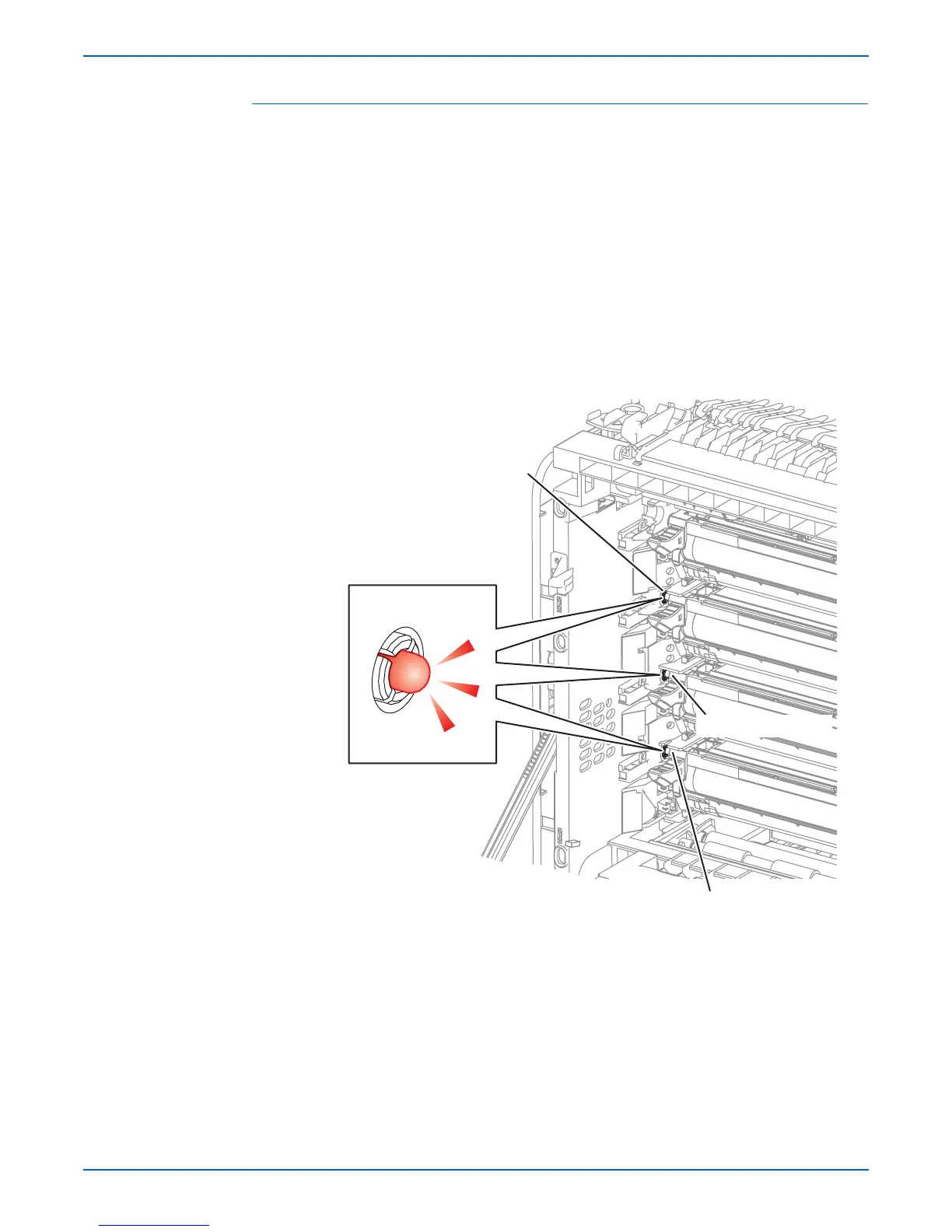

s6180mfp-194
Cyan Erase Lamp
Magenta Erase Lamp
Yellow Erase Lamp
