Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 5-19
Print-Quality Troubleshooting

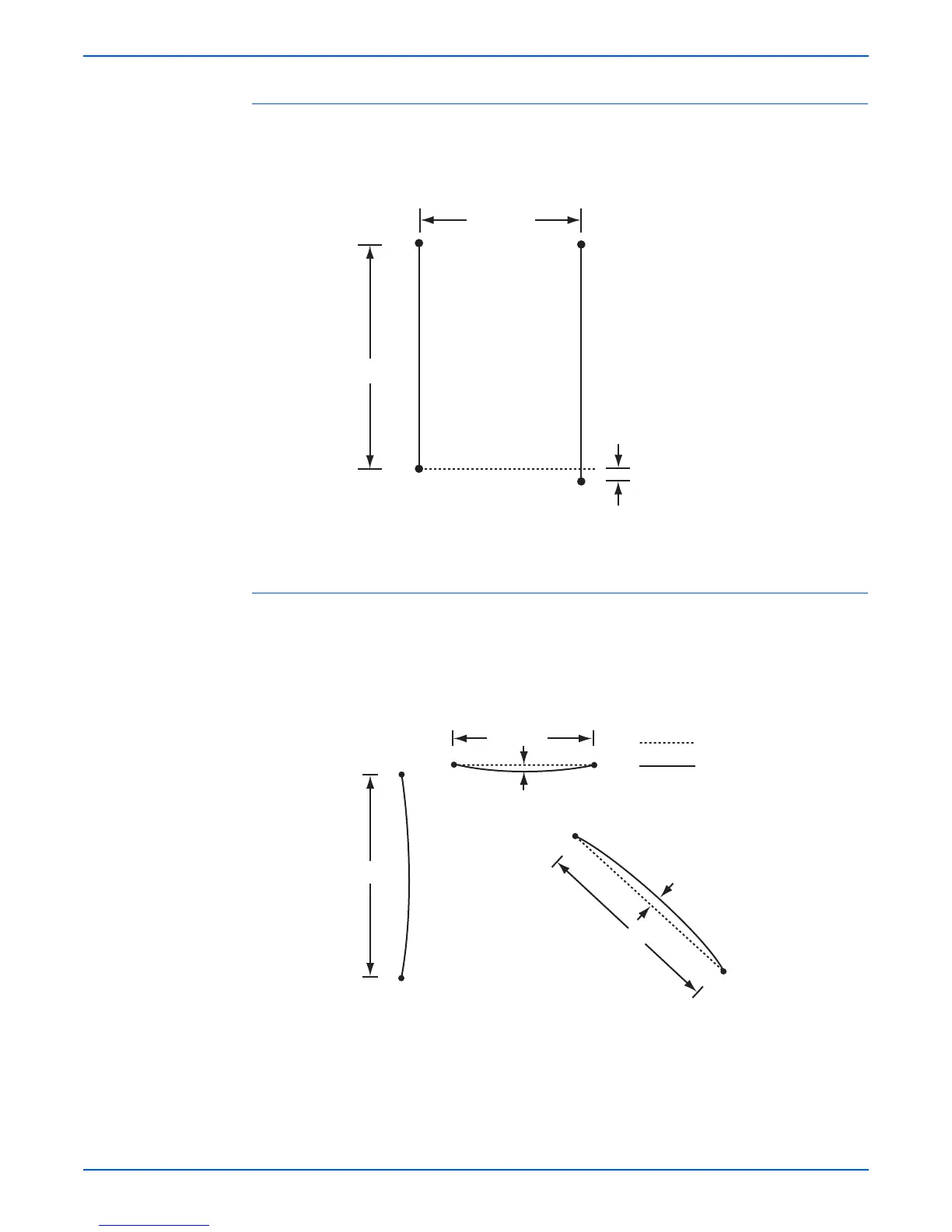

Parallelism
■ Horizontal: 179.8 mm (7.1 in.) ± 1.2 mm (.05 in.)
■ Vertical: 234 mm (9.2 in.) ± 1.2 mm (.05 in.)
Linearity
■ Horizontal: 190.0 mm (7.5 in.) ± 0.5 mm (.02 in.)
■ Vertical: 234.0 mm (9.2 in.) ± 0.5 mm (.02 in.)
■ Slant: 269.0 mm (10.6 in.) ± 1.2 mm (.05 in.)
Parallelism
234 mm
179.8 mm
I
K
C
Parallelism
(within ±1.2 mm)
B
E
G
J
H
D
190 mm
234 mm
269 mm
Linearity of
Vertical Line (mm)
(within ±0.5 mm)
Linearity of Horizontal Line (within ±0.5 mm)
Linearity of Slant
(within ±1.2 mm)
Assumed Perfect Line
Printed Real Line
Linearity

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
