Xerox Phaser 6180MFP Service Manual

5-20 Phaser 6180MFP Multifunction Printer Service Manual
Print-Quality Troubleshooting

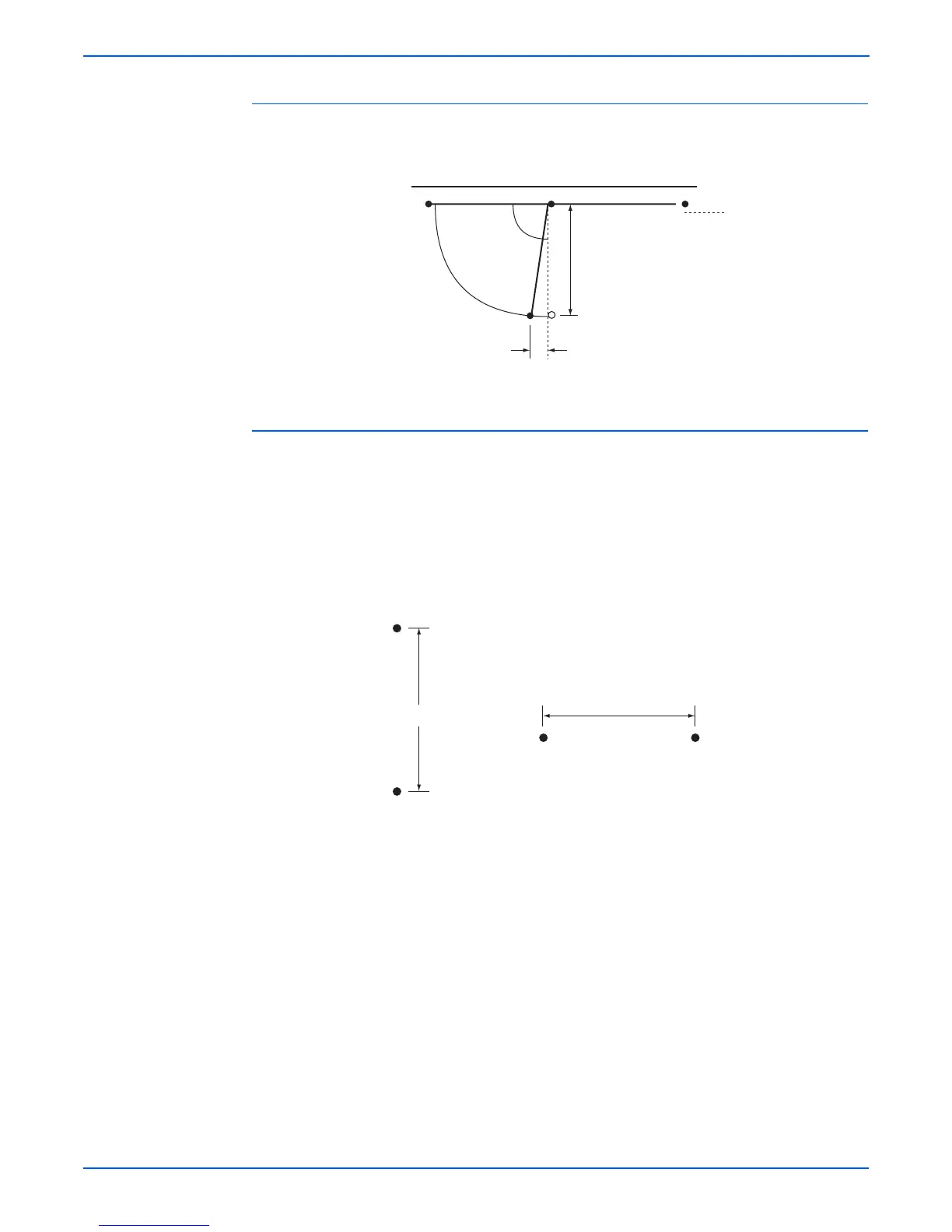

Perpendicularity
■ 114.5 mm (4.5 in.) ± 0.8 mm (.03 in.)
Magnification Error
■ Horizontal Simplex: 190.0 mm (7.5 in.) ± 0.5%
■ Horizontal Duplex:190.0 mm (7.5 in.) ± 0.8%
■ Vertical Simplex: 234.0 mm (9.2 in.) ± 0.5%
■ Vertical Duplex: 234.0 mm (9.2 in.) ± 0.8%
Lead Edge
Assumed Perfect Line
Perpendicularity = B - b (within ±0.8 mm)
A
B
C
90
114.5 mm
F
b
Perpendicularity
B
J
EG
Magnification = Measured Length / Nominal (within ±0.5%)
Nominal = 234 mm
Nominal = 190 mm
Magnification
