Phaser 6180MFP Multifunction Printer Service Manual 5-21
Print-Quality Troubleshooting
Image to Page Registration
■ Leading Edge: 10.0 mm (.40 in.) ± 2.0 mm (.08 in.)
■ Side Edge: 8.5 mm (.33 in.) ± 2.5 mm (.09 in.)
Maximum Print Areas
■ Maximum Print Area: 210.9 mm (8.3 in.) x 351.6 mm (13.8 in.)
■ Guaranteed Print Area: 207.9 mm (8.2 in.) x 347.6 mm (13.7 in.)

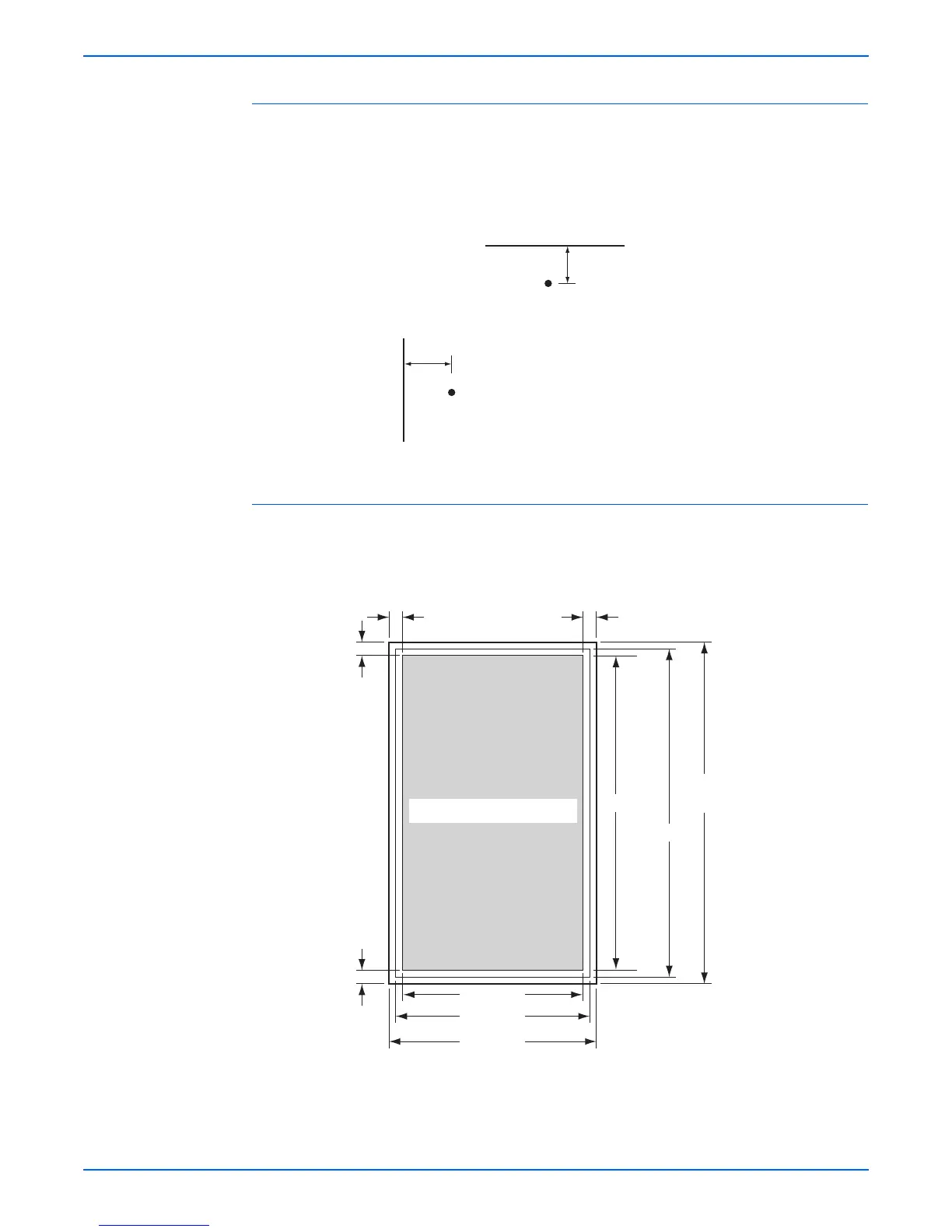

Registration = Measured Length - Nominal
Lead Edge
Nominal = 10.0 mm
(within ±2 mm)
Nominal = 8.5 mm
(within ±2.5 mm)
Left Edge
B
F
Registration
Guaranteed and Maximum Area
4 mm
4 mm
4 mm
4 mm
355.6 mm
(14 inch)
215.9 mm
(8.5 inch)
351.6 mm
347.6 mm
210.9 mm
Guaranteed printing area
207.9 mm
