Service Parts Disassembly

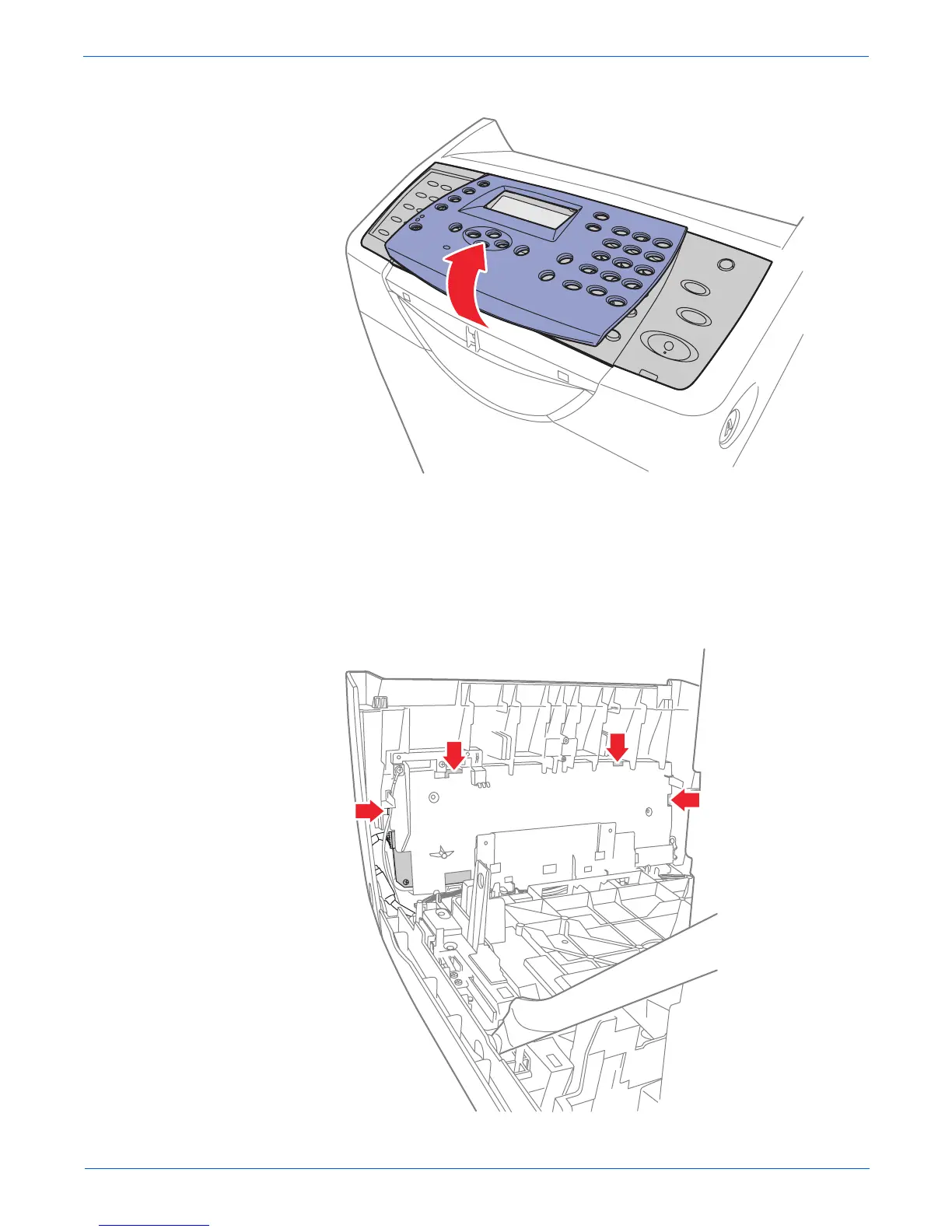

5. Lift up the Bezel from the Control Panel to remove it.
Caution
DO NOT move the Control Panel too far, because the Control Panel is
secured to the Control Panel wiring harness.
6. Release the hooks securing the Control Panel to the Front Cover (2 on
the top, 1 on the left, and 1 on the right). Use a flat tip screwdriver to
release the hidden hook on the right.
