Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-49
Service Parts Disassembly
Caution
Be sure to hold the bottom left of the Feeder while removing the 2 screws
to prevent the Feeder drop to the bottom.
18. Close the Front Door (this provides easier access to the Feeder Unit)
Remove 2 screws (10 mm) securing the Feeder Unit.
Caution
Be careful not to drop the Earth Spring on the right side of the Feeder
Unit.
19. Move the Feeder down and forward to release the notch on the left side of
the Feeder out of the hole on the printer. Slightly shift the Feeder Unit
toward the rear left side to remove the notches (1 on the Earth Spring and
1 on the right side of the Feeder Unit) out of the holes on the printer.
20. Pull the Shaft section and the Clutch on the right side of the Feeder Unit
out of the hole on the printer and remove the Feeder Unit.

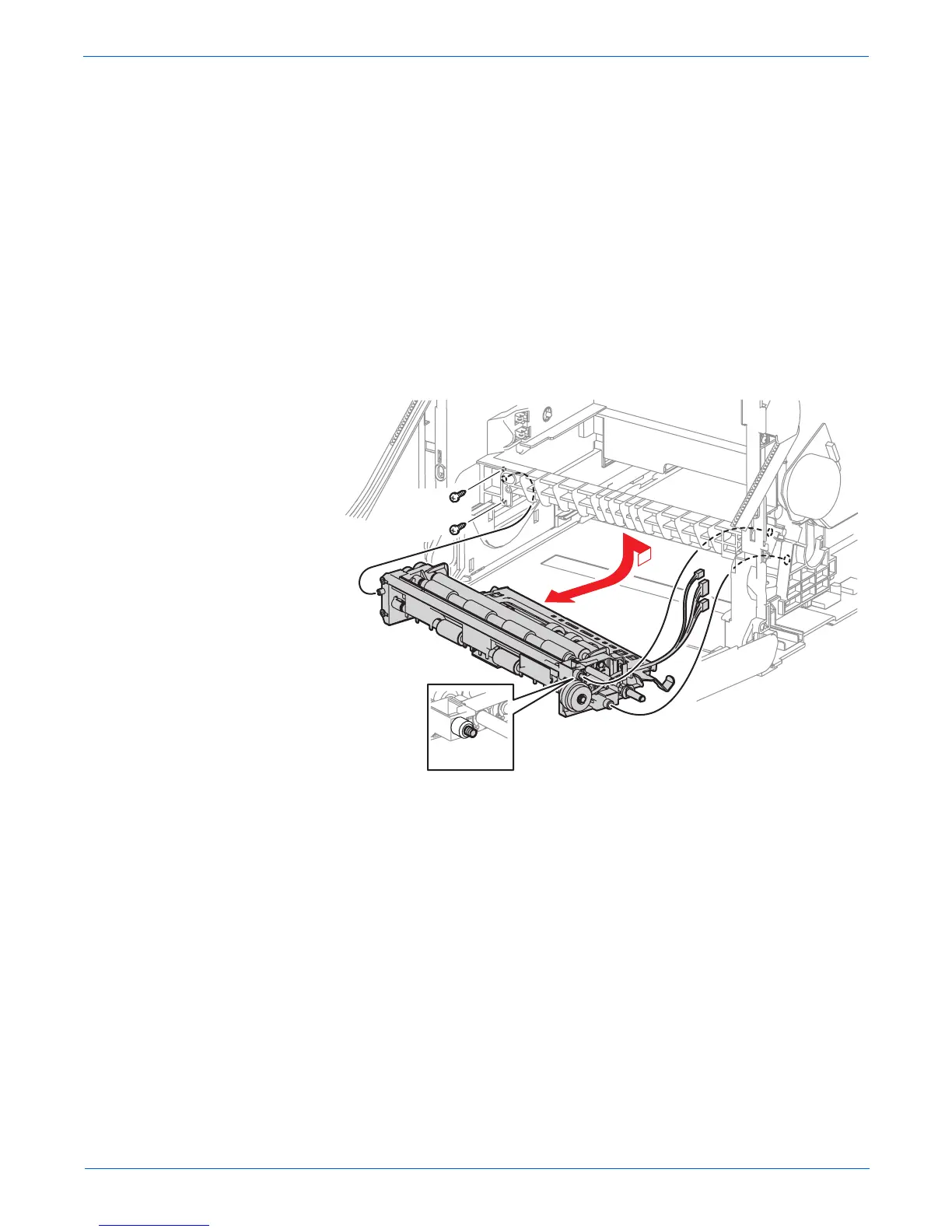

s6180mfp-371

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
