Phaser 6180MFP Multifunction Printer Service Manual 8-65
Service Parts Disassembly

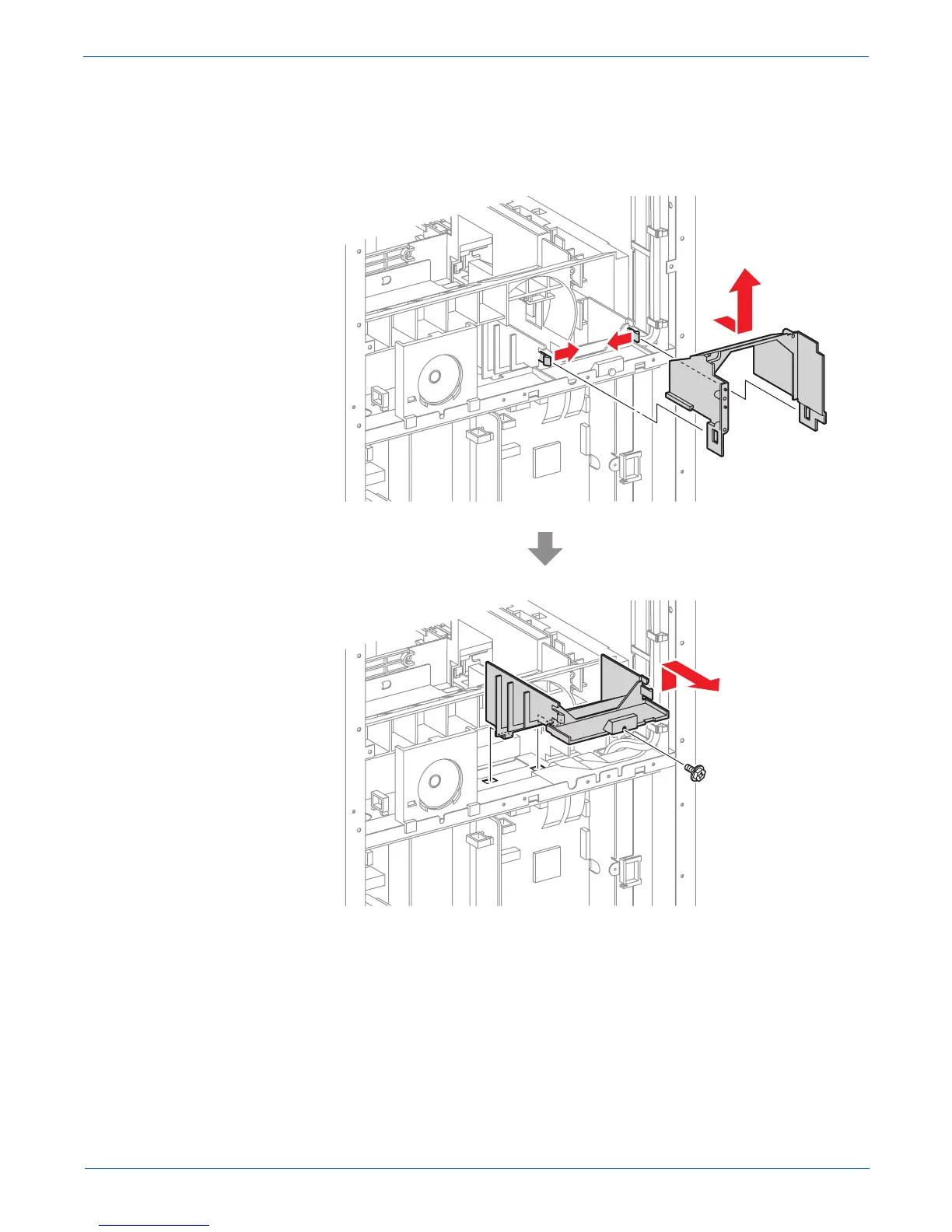

15. Use a flat tip screwdriver to release the 2 hooks on the inside of the Lower
Duct (PL9.2.8) and slide the Upper Duct backward to remove it.
16. Remove 1 screw (6 mm) securing the Lower Duct to the printer.
17. Release the 2 Lower Duct hooks from the hole of the printer and remove
the Lower Duct.
s6180mfp-295
To Next Page
