Service Parts Disassembly

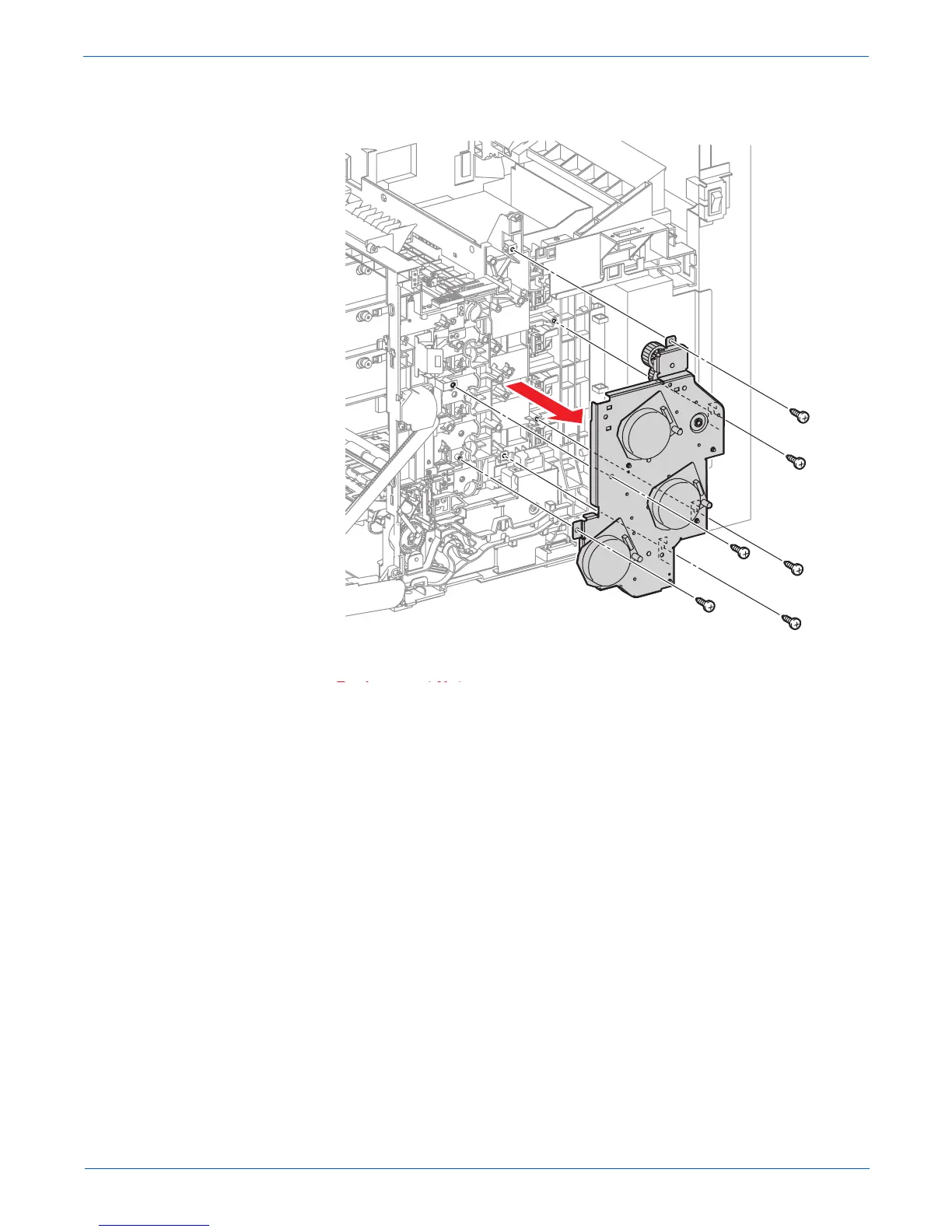

20. Remove 6 screws (10 mm) securing the Main Drive to the printer.
21. Remove the Main Drive.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Be sure to place the wiring harness connecting the Developer Motor
through the back of the hook on the Drive Assembly (PL8.1.7).
