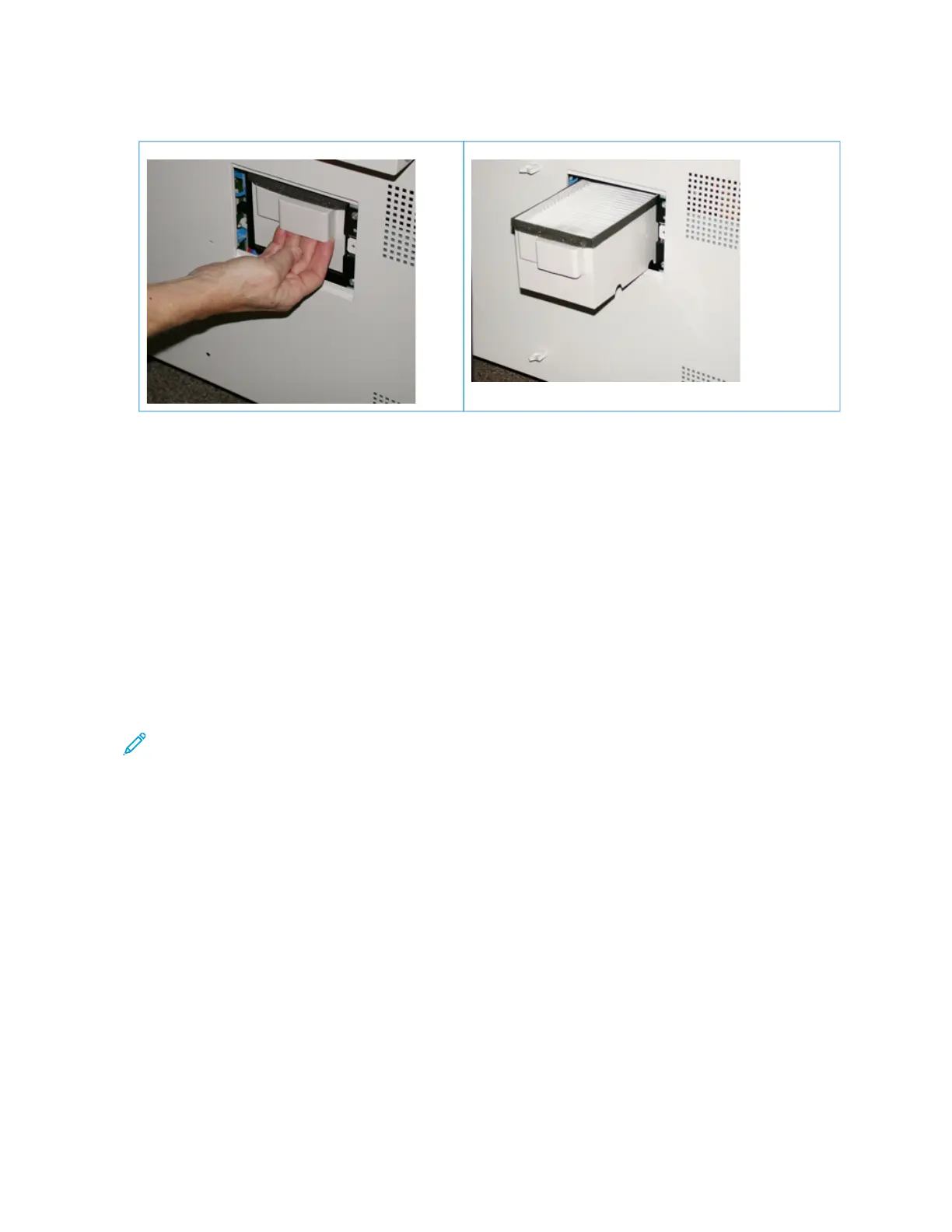

4. Grasp the handle of the filter box and pull straight out.
5. Remove the Suction filter out of the box.
6. Place the new Suction filter into the box and push the tray back in until it stops and is flush with the press.
7. Place the cover back onto the filter box area. Make sure to first insert the left two tabs of the cover into the left
side of the box area. Then push the entire cover flush to the press.
8. Insert the Torx driver with the screw attached into the cover and turn clockwise to tighten.
9. Log in as the Administrator or ask the Administrator to perform the following steps to reset the counter to zero
(0):
a. At the UI, press the Machine Status button.
b. From the screen that displays, select the Tools tab.
c. Select System Settings > Common Service Settings > Maintenance.
d. Use the arrow buttons to access the next Maintenance screens.
Note: After selecting the icon in following step, there is a 4 second delay before the Technical Key Operator
feature displays.
e. Select the Technical Key Operator (TKO) icon.
The Technical Key Operator feature displays.
f. Log in to the Technical Key Operator mode.
AAtttteennttiioonn
If you cannot log in as TKO, or do not have the TKO password, call your Customer Service Engineer.
g. In the Part Number list, select Suction Filter.
h. Select Reset Current Value. The system resets the HFSI to 0.
10. Exit administrator mode.
a. To return to Tools tab, select Close twice.
The main Tools screen displays.
b. Select the Log In / Out button on the User Interface.
242
Xerox
®
Versant
®
280 Press User Documentation
