Xerox Versant 280 - Clearing Paper Jams from Trimmer Area E7

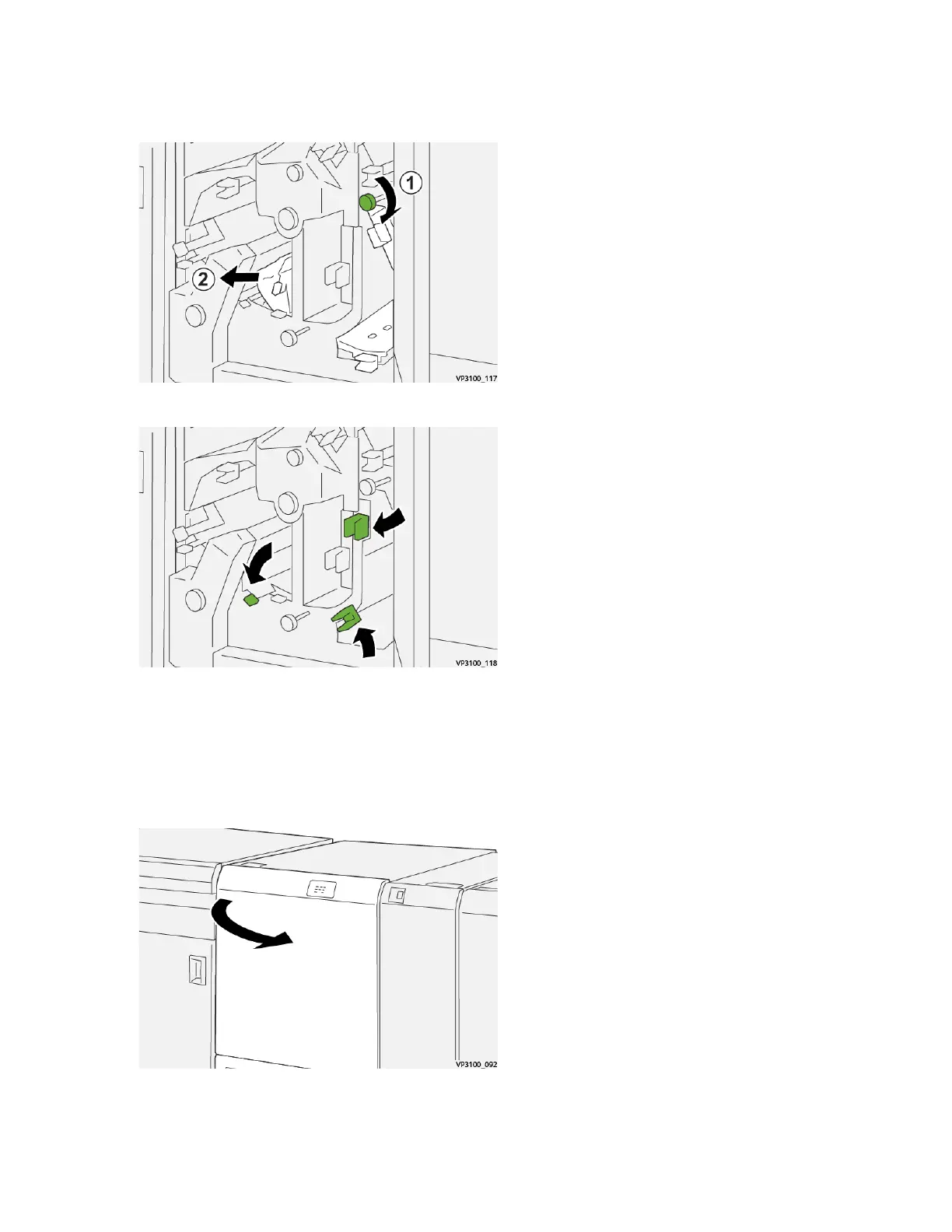

5. Rotate knob 3c clockwise (1) and remove jammed paper (2).
6. Return levers 3a, 4b and 4c to their original positions.
7. Close the trimmer upper cover.
8. If the press indicates there are additional paper jams, follow the instructions to clear the paper and to resume
printing.
Clearing Paper Jams from Trimmer Area E7
1. Open the trimmer upper cover.
384 Xerox
®
Versant
®
280 Press User Documentation
Troubleshooting
