Maintenance Object Repair Procedures
555-233-123
10-1050 Issue 4 May 2002

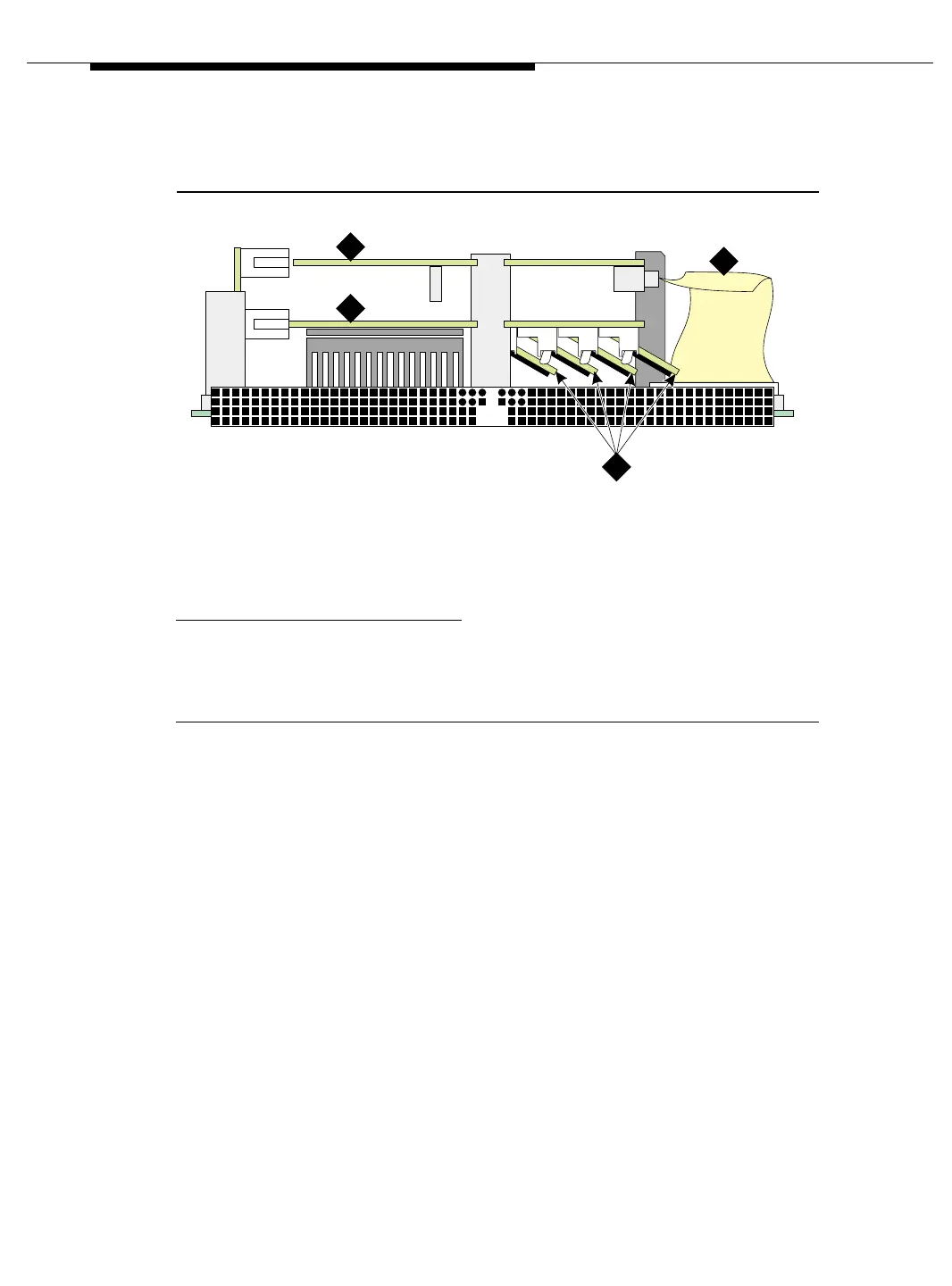

Figure 10-68 shows the end view of the thee boards and interconnecting cables
on the TN802.
Figure 10-68. TN802 board assembly and cables (end view)
Figure Notes:
1. Analogic board
2. Texas Microsystems Inc. (TMI)
board
3. SIMMs (memory)
1
4. SCSA (Signal Computing System
Architecture) ribbon cable
1 If the board is seated and you hear fast beeping, it means that one of the small boards
containing the memory chips is dislodged. Secure the memory board firmly in the
receptacle and reseat the circuit pack.
ckdfmap3 KLC 040699
1
2
4
3
