Maintenance Object Repair Procedures
555-233-123
10-1958 Issue 4 May 2002

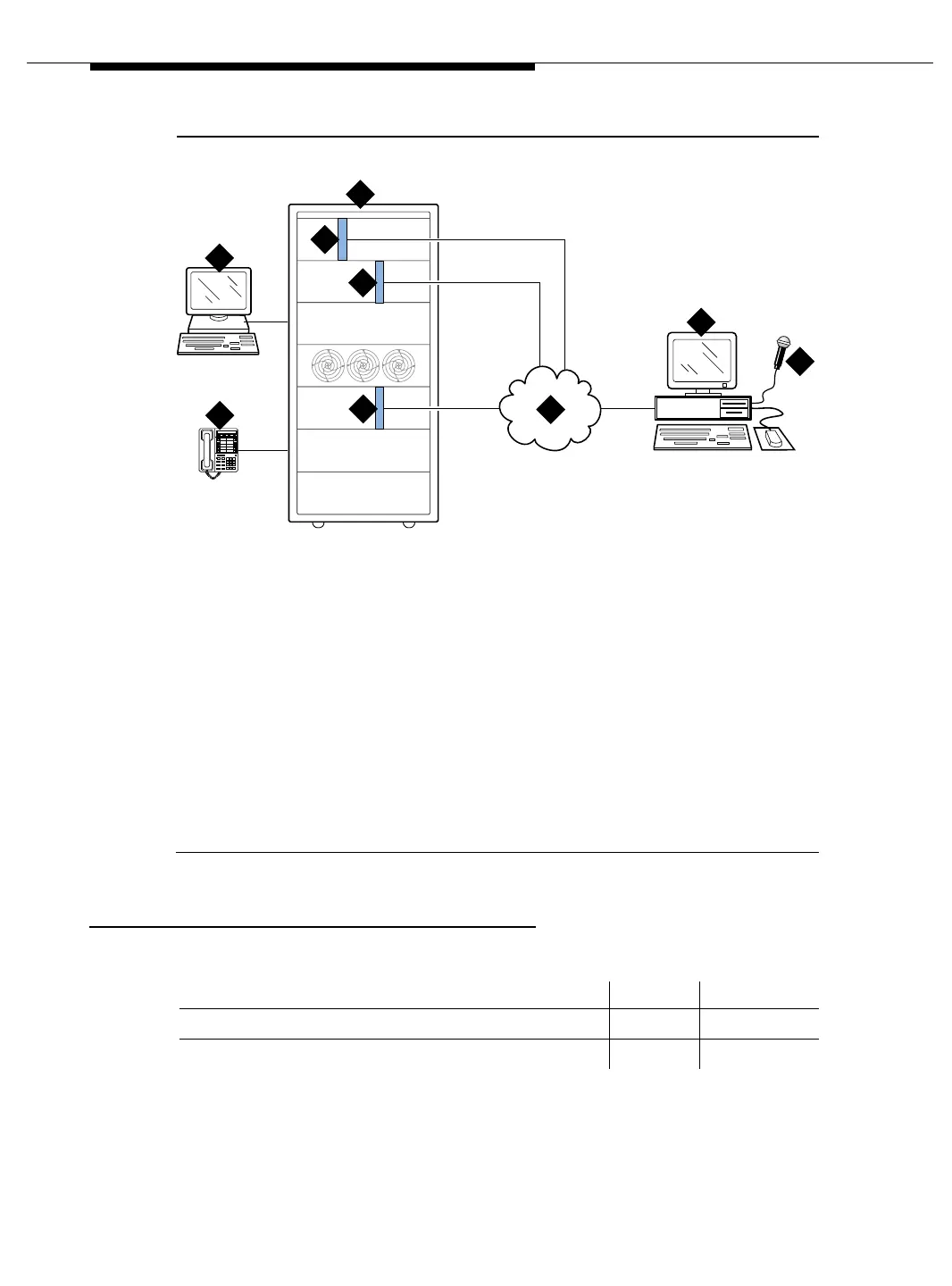

Figure 10-104. VAL configuration options
Hardware specifications
The following table shows the required VAL hardware..
Figure Notes
1. TN2501AP VAL
announcement circuit pack
2. System access terminal (SAT)
3. Switch
4. Phone for recording
announcements
5. TN799C (C-LAN) is required
when using IP SAT or VAL
Manager.
6. Your LAN (See LAN cable)
7. computer or remote recording studio for
■ recording and storing announcements
■ FTP client application
■ VAL Manager application (PC only)
8. Microphone
Part Number Comcode
TN2501AP 1 108772583
Backplane Adapter (Label reads IP Media Processor) 1 848525887
cydfval LJK 032001
