Datalogic Magellan 9800i User Manual

Enter/Exit Programming Mode
142 Magellan™ 9800i Scanner

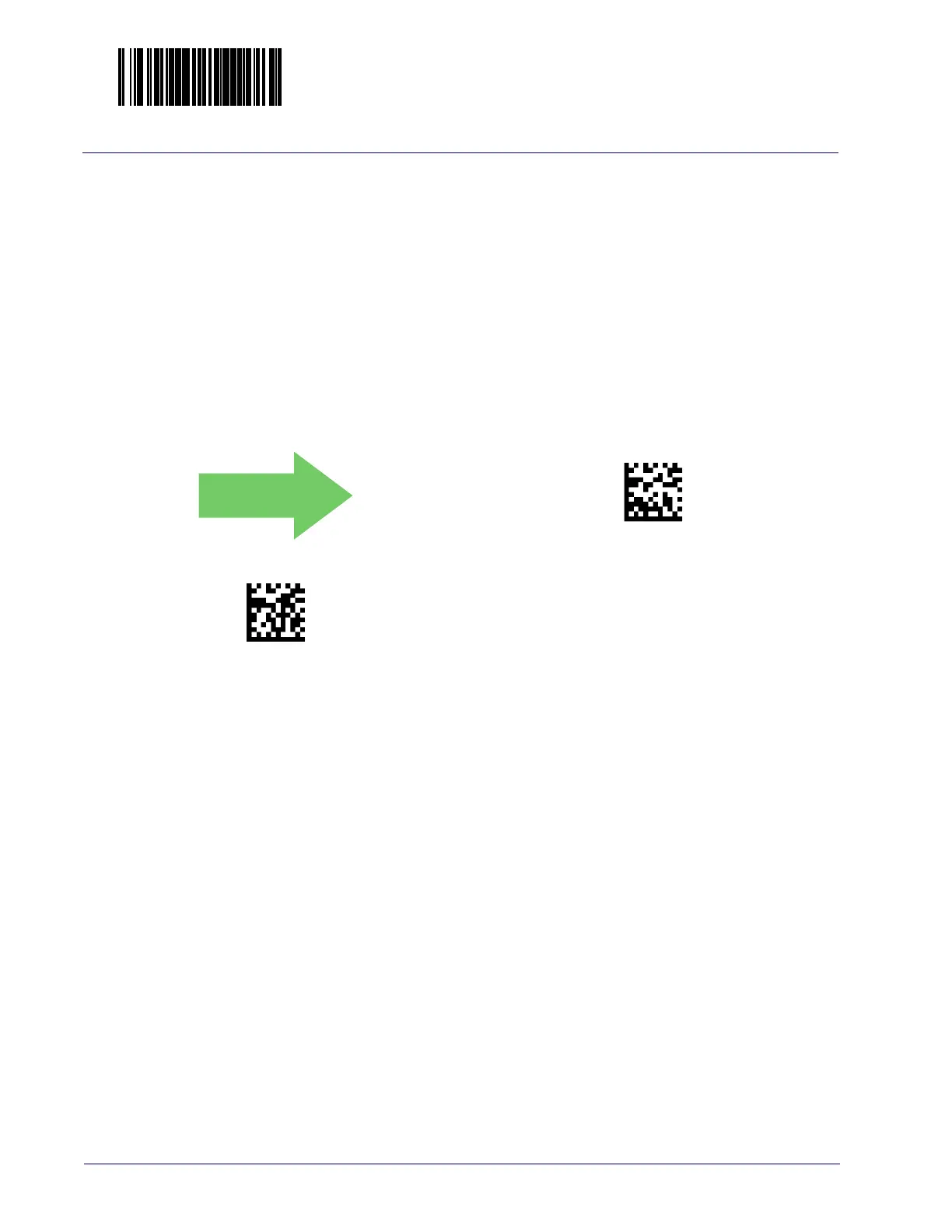

Auxiliary USB Mode
This option specifies the function of the USB auxiliary port.
To set this feature:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes
on this and
the facing page to ensure that the scanner reads only the bar code you intend
to scan.
3. Complete the programming sequence by scanning the
Enter/Exit Programming Mode bar
code.
DEFAULT
051700(CR)
Auxiliary USB Mode = Disable
051701(CR)
Auxiliary USB Mode = PIR/CT Output + Diagnostics
Reporting
