Datalogic Magellan 9800i User Manual

Product Reference Guide 61
Chapter 4
TDR, Camera and Mobile Commerce
The scanner can optionally include a Top Down Reader (TDR), Camera and/or a Mobile
Commerce Reader. These premium features offer state-of-the-art functionality to point of
sale transactions, while increasing first pass read rates for item scanning.
Optional TDR Feature
The Top Down Reader adds sixth side scanning to an already extensive scan zone (see
Figure 40a). Items being passed through the zone will be scanned from t
he top as well as
the front, back, two sides and bottom as shown in Figure 40b.

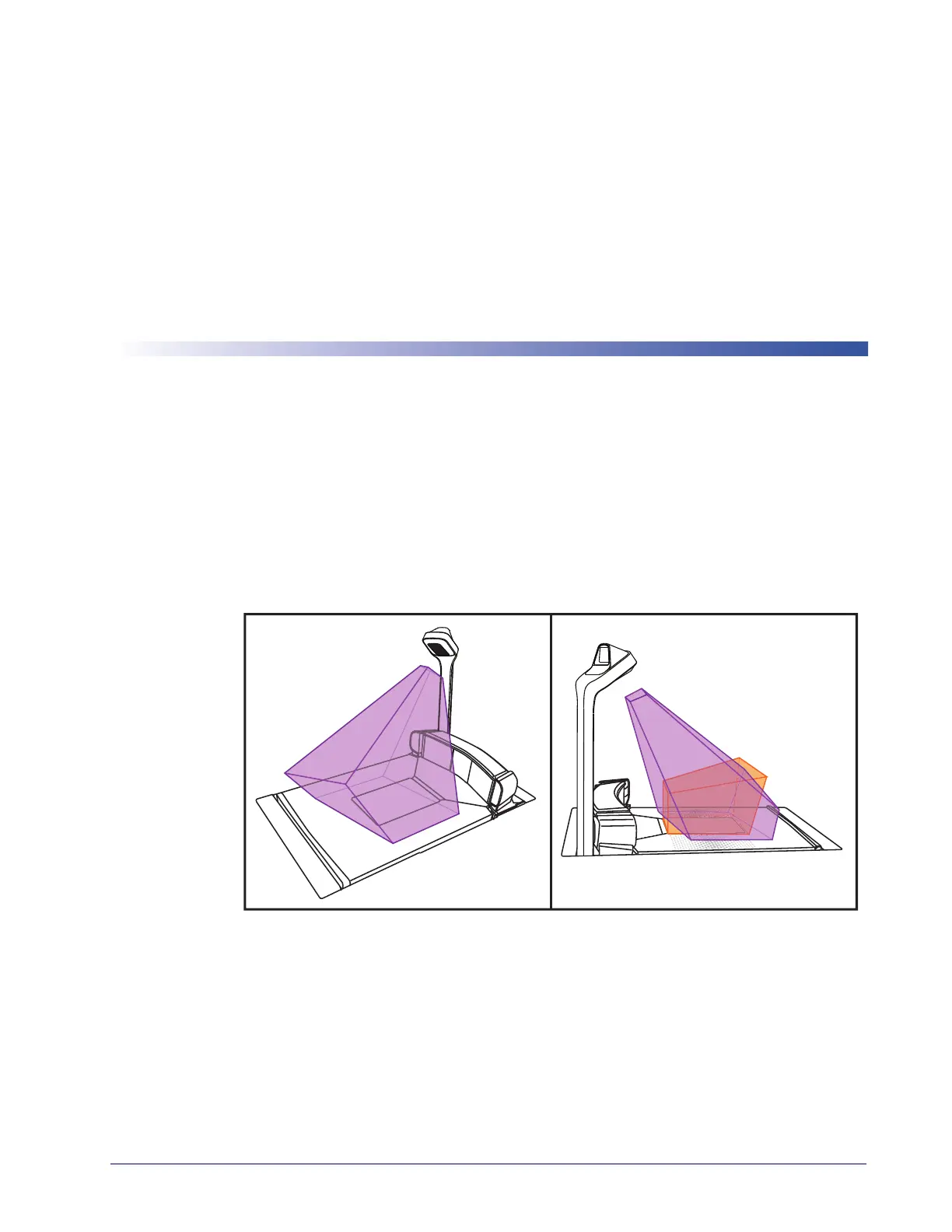

Figure 40. Top Down Reader (TDR)
ab

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
