Enter/Exit Programming Mode
210 Magellan™ 9800i Scanner
Single Cable RS-232 Datalogic Extensions
When Datalogic extensions are enabled, scale calibration mode information is communicated to
the host. Contact Customer Support for the format of this information. Choices for this feature
are:
• Standard Protocol
• Support Datalogic Extensions to Protocol
To set this feature:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes
on this and
the facing page to ensure that the scanner reads only the bar code you intend
to scan.
3. Complete the programming sequence by scanning the
Enter/Exit Programming Mode bar
code.

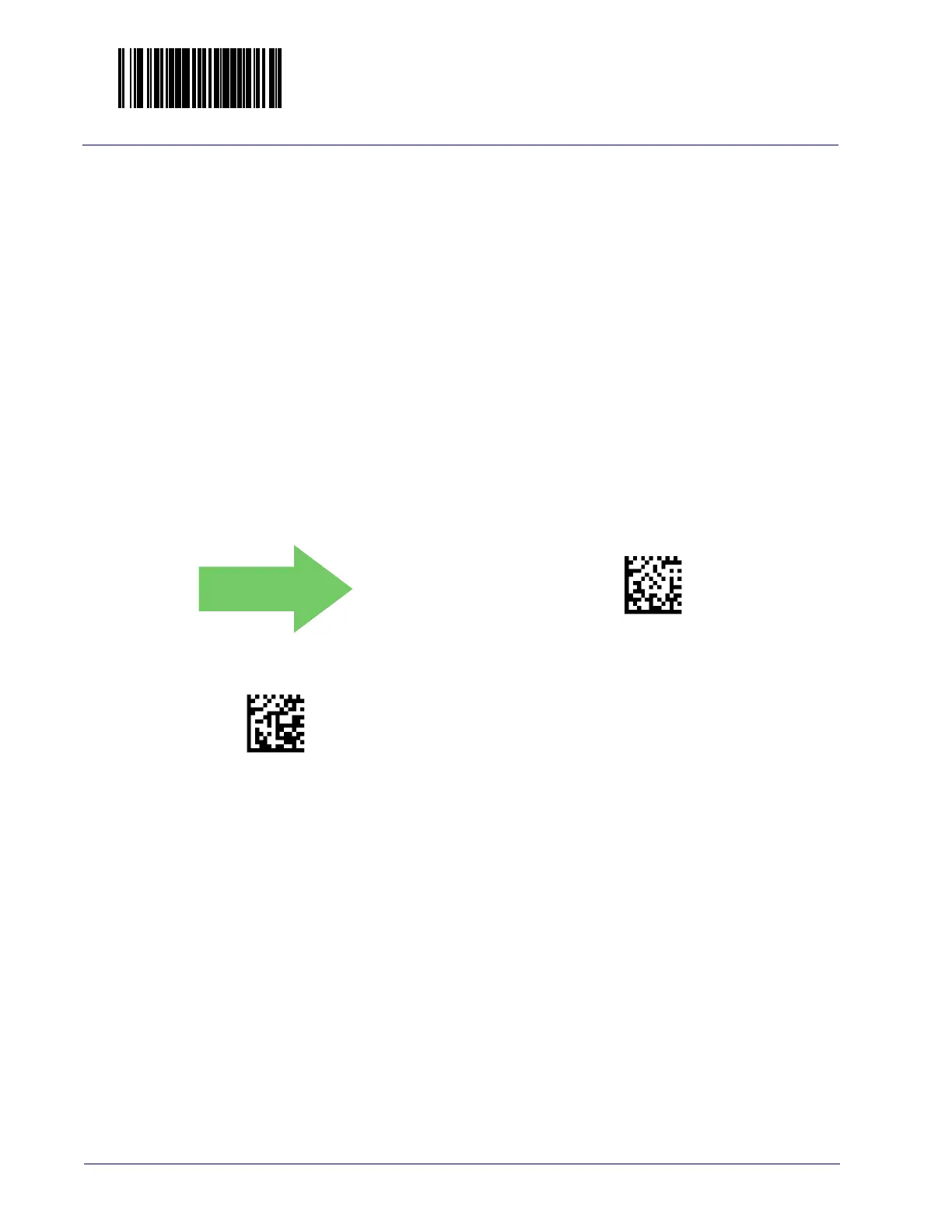

DEFAULT
050A00(CR)
Single Cable RS-232 Datalogic Extensions = Standard
Protocol
050A01(CR)
Single Cable RS-232 Datalogic Extensions = Support Data-
logic Extensions to Protocol

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
