Enter/Exit Programming Mode
192 Magellan™ 9800i Scanner
RS-232 ACK NAK Enable
This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol.
When configured, the scanner and/or host sends an “ACK” when it receives data properly, and
sends “NAK” when the data is in error. Selections for this option are:
•Disable ACK NAK
• Enable for Label Transmission — the scanner expects an ACK/NAK response from the
host
when a label is sent)
• Enable for Host Acknowledgement — Enabled for H
ost Commands (the scanner will
respond with ACK/NAK when the host sends a command)
• Enable for Label & Host — Enabled for both Label
Transmission & Host Command
acknowledgement.

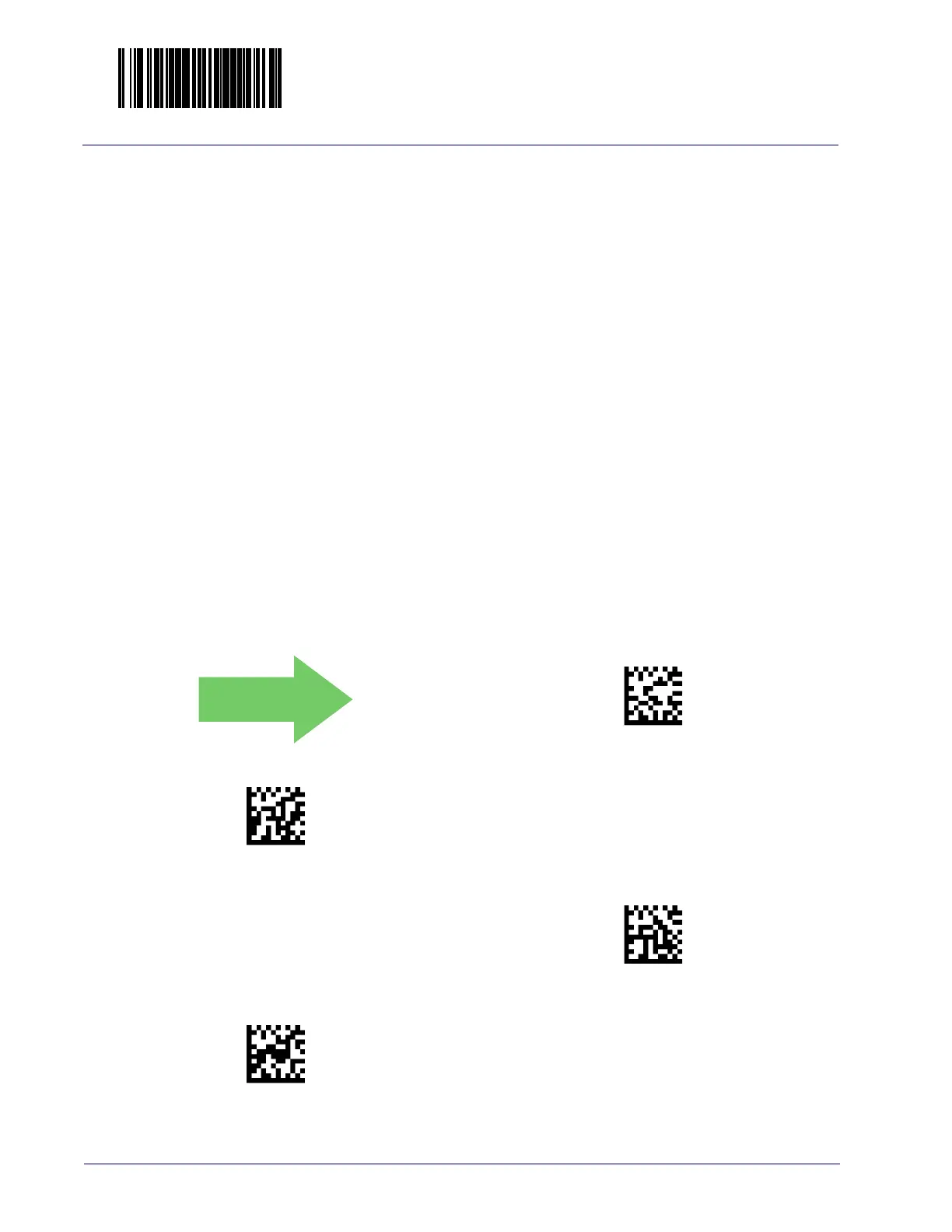

To select the option for RS-232 ACK NAK Enable:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the desired option from bar codes below and on the following page. You’ll need to
co
ver any unused bar codes on this and the facing page to ensure that the scanner reads
only the bar code you intend to scan.
3. Complete the programming sequence by scanning the
Enter/Exit Programming Mode bar
code.
DEFAULT
061100(CR)
RS-232 ACK NAK = Disable
061101(CR)
RS-232 ACK NAK = Enable for Label Transmission
061102(CR)
RS-232 ACK NAK = Enable for Host Acknowledgement
061103(CR)
RS-232 ACK NAK = Enable for Label & Host

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
