Datalogic Magellan 9800i User Manual

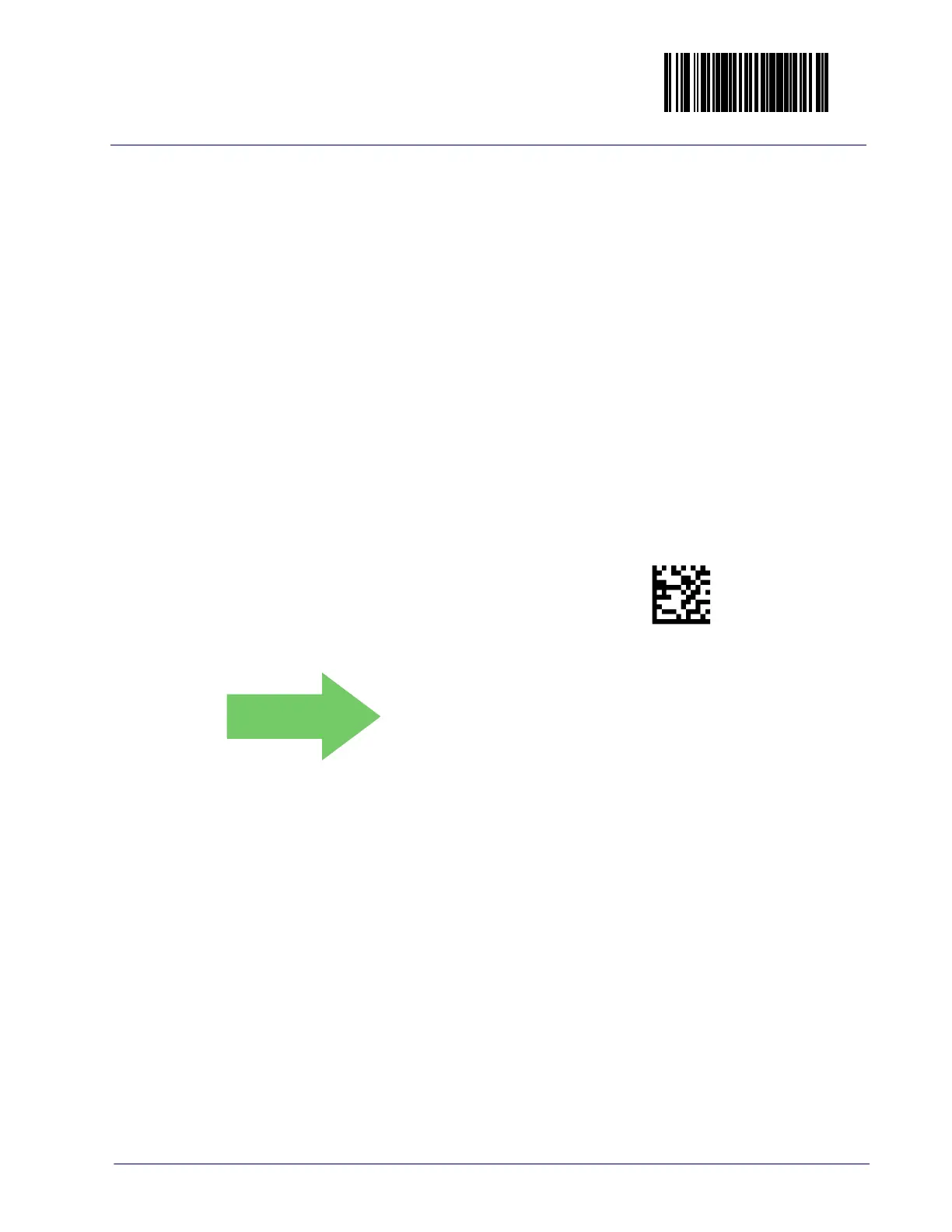

Enter/Exit Programming Mode
Product Reference Guide 291
DataBar Expanded Length 1
Length 1 is the minimum label length if in variable length mode, or the first fixed length if in
fixed length mode. Length includes the bar code's data characters only.
To set this feature:
1. Scan the ENTER/EXIT Programming Mode bar code.
2. Scan the barcode, Set DataBar Expanded Length 1 below. You’ll need to cover any
unused barcodes on this and the facing page to ensure that the scanner reads only the bar-
code you intend to scan.
3. Scan the appropriate digits from the Keypad in Appendix C that represent the desired
label length. The selectable range for this option is 00 to 74. P
ad all single digit numbers
with a leading zero to yield a two-digit entry (00-74).
4. Complete the programming sequence by scanning
the ENTER/EXIT Programming
Mode bar code.
04BE(CR)
Set DataBar Expanded Length 1
DEFAULT
Default setting for this feature = 01

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
