Enter/Exit Programming Mode
Product Reference Guide 201
Single Cable RS-232 Scanner Only Protocol
This sets the type of interface protocol that will be used in Single Cable RS-232.
Options are:
• Scanner/scale RS-232 protocol
• Scanner only RS-232 protocol
To set this feature:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the bar code below representing the desired option. You’ll need to cover any unused
bar codes on this and
the facing page to ensure that the scanner reads only the bar code
you intend to scan.
3. Complete the programming sequence by scanning the
Enter/Exit Programming Mode bar
code.

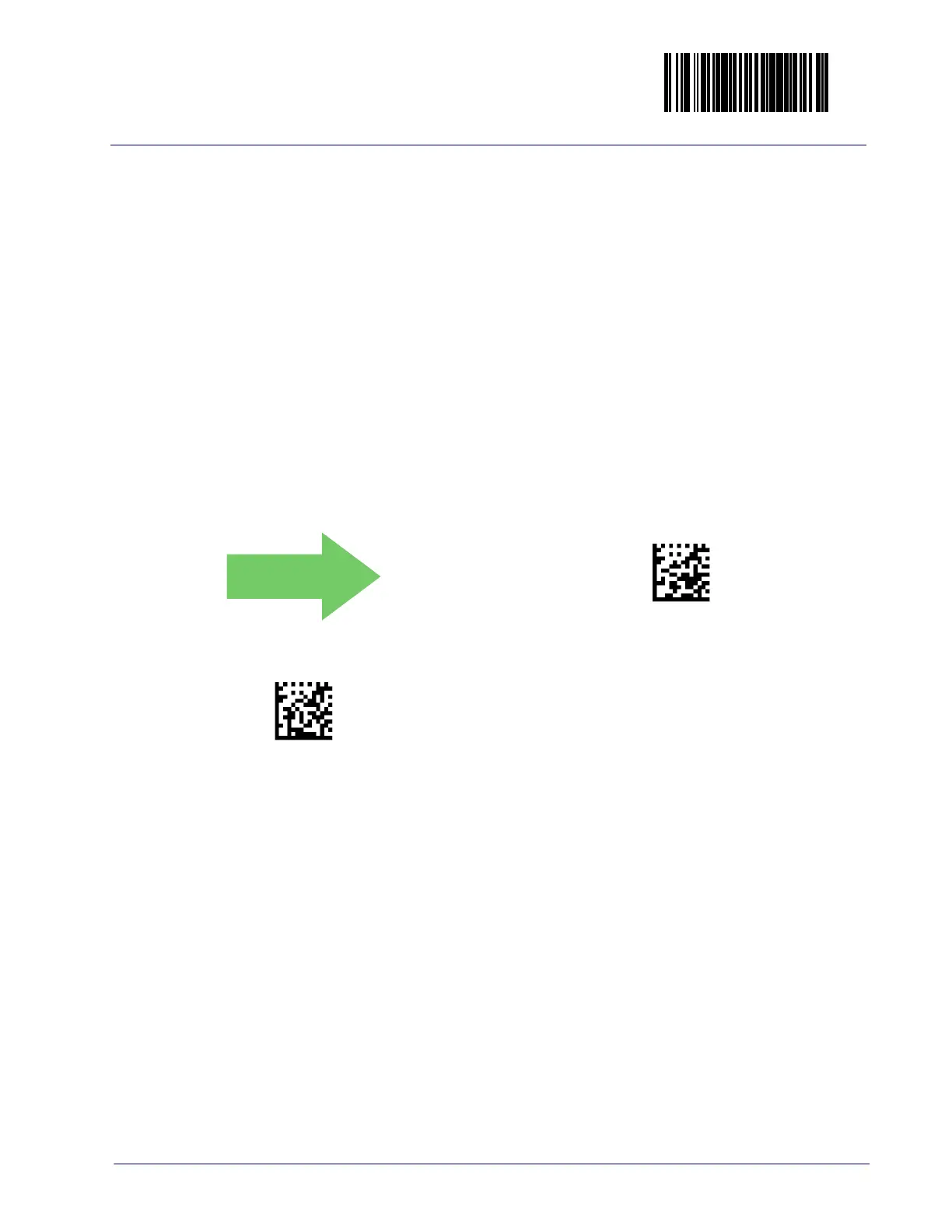

DEFAULT
047C00(CR)
Single Cable RS-232 Scanner Only Protocol = Scanner/
scale RS-232 protocol
047C01(CR)
Single Cable RS-232 Scanner Only Protocol = Scanner
Only protocol

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
