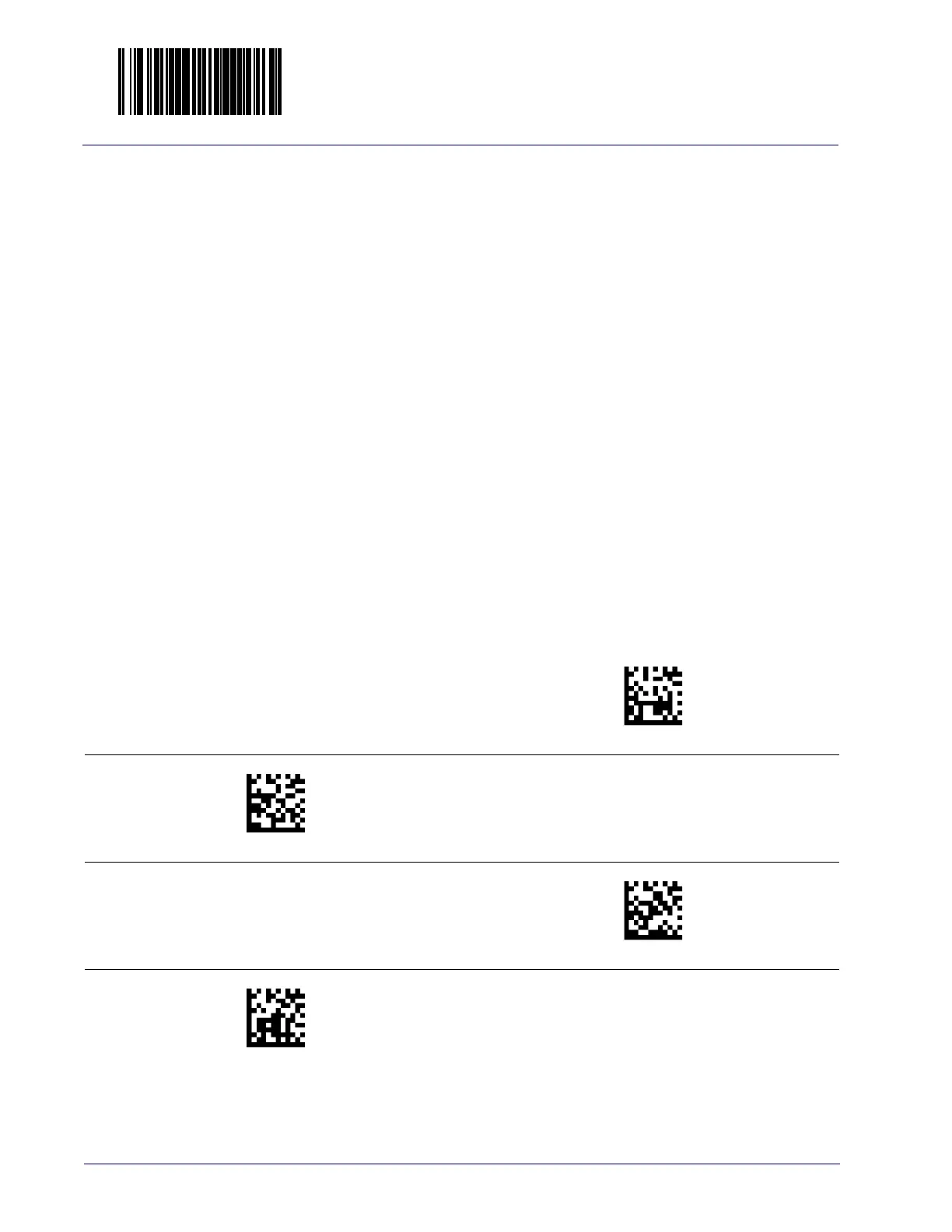

Enter/Exit Programming Mode
228 Magellan™ 9800i Scanner
Label ID
This feature allows the setting of custom Label ID character(s) for each available symbology type
if other than the default Label ID is desired.
To set this feature:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the bar code for the desired symbology below. You’ll need to cover any unused bar
codes on
this and the facing page to ensure the scanner reads only the bar code you intend
to scan.
3. Scan the appropriate digits from the
Keypad in Appendix C that represent the desired
Label ID characters; entered as two hex pairs.
A table containing the ASCII Character Set
and their corresponding Hex Values is available in the inside back cover of this manual.
ASCII parameters must be input by scanning a pair of hexadecimal digits for each charac-
ter. Thus, to set a two-character value of AB, bar codes containing
the digits ‘4’, ‘1’, ‘4’,
and ‘2’ must be scanned. The selectable range for this option is any hex value from 00 to
FF.
Complete the programming sequence by scanning the Enter/Exit Programming Mode bar code.
Default Label ID for this symbology is:
41 = A
0024(CR)
Set UPC-A Label ID
002D(CR)
Set UPC-A 2-Digit Supplemental Label ID
Default Label ID for this symbology is:
41 = A
Default Label ID for this symbology is:
41 = A
002E(CR)
Set UPC-A 5-Digit Supplemental Label ID
0025(CR)
Set UPC-E Label ID
Default Label ID for this symbology is:
45 = E
1D Symbologies

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
