Enter/Exit Programming Mode
160 Magellan™ 9800i Scanner
EAS Features — Checkpoint
The features in this section apply only to Checkpoint
®
EAS systems. See EAS Features —
Sensormatic on page 147 to set options for that system.

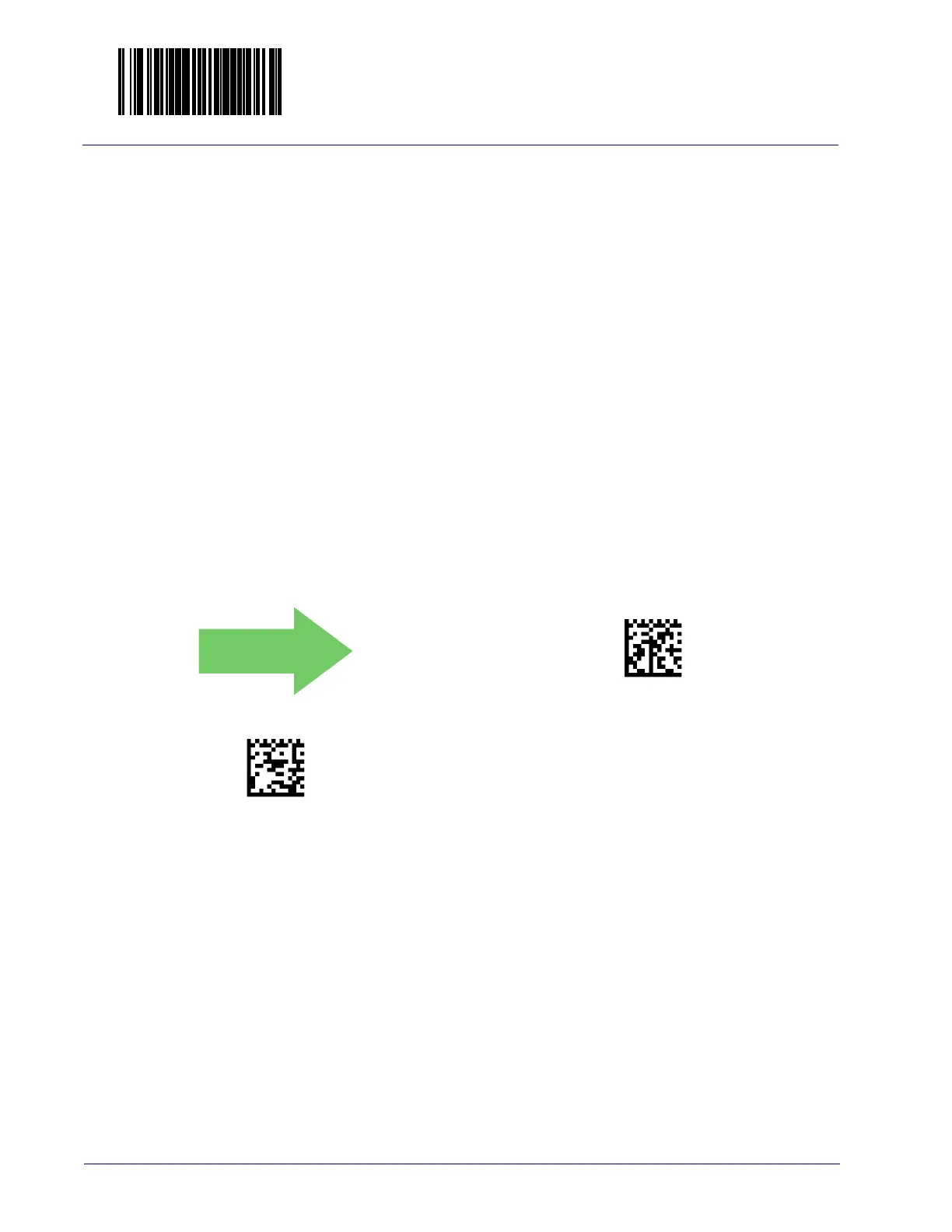

ERI Active State
Specifies the active state polarity of ERI; the inactive state is its opposite polarity. ERI
output goes active during the good read of a bar code, allowing the EAS device to deactivate
a tag on the product.
To set the ERI Active State:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan your selection from the bar codes below
. You’ll need to cover any unused bar
codes on this and the facing page to ensure that the scanner reads only the bar code you
intend to scan.
3. Complete the programming sequence by scanning the
Enter/Exit Programming Mode
bar code.
DEFAULT
00F900(CR)
ERI Active State = Active Low
00F901(CR)
ERI Active State = Active High

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
