Product Reference Guide
7
Physical Parameters
This section provides specifications for performance, environmental and electrical parameters.
Reference the second section of this manual, Site Preparation and Installation, for physical
measurements of all models and some accessories.
Scanning
A scan zone (Figure 4) exists in the area between the horizontal and vertical scan windows, and
the Top Down Reader (TDR), if that optional feature is present. Separate projections
from each
of these sources combine to form a zone where bar code labels are read. Refer to the Operation
and Maintenance section of this manual for more details about the topic: Scanning Items.

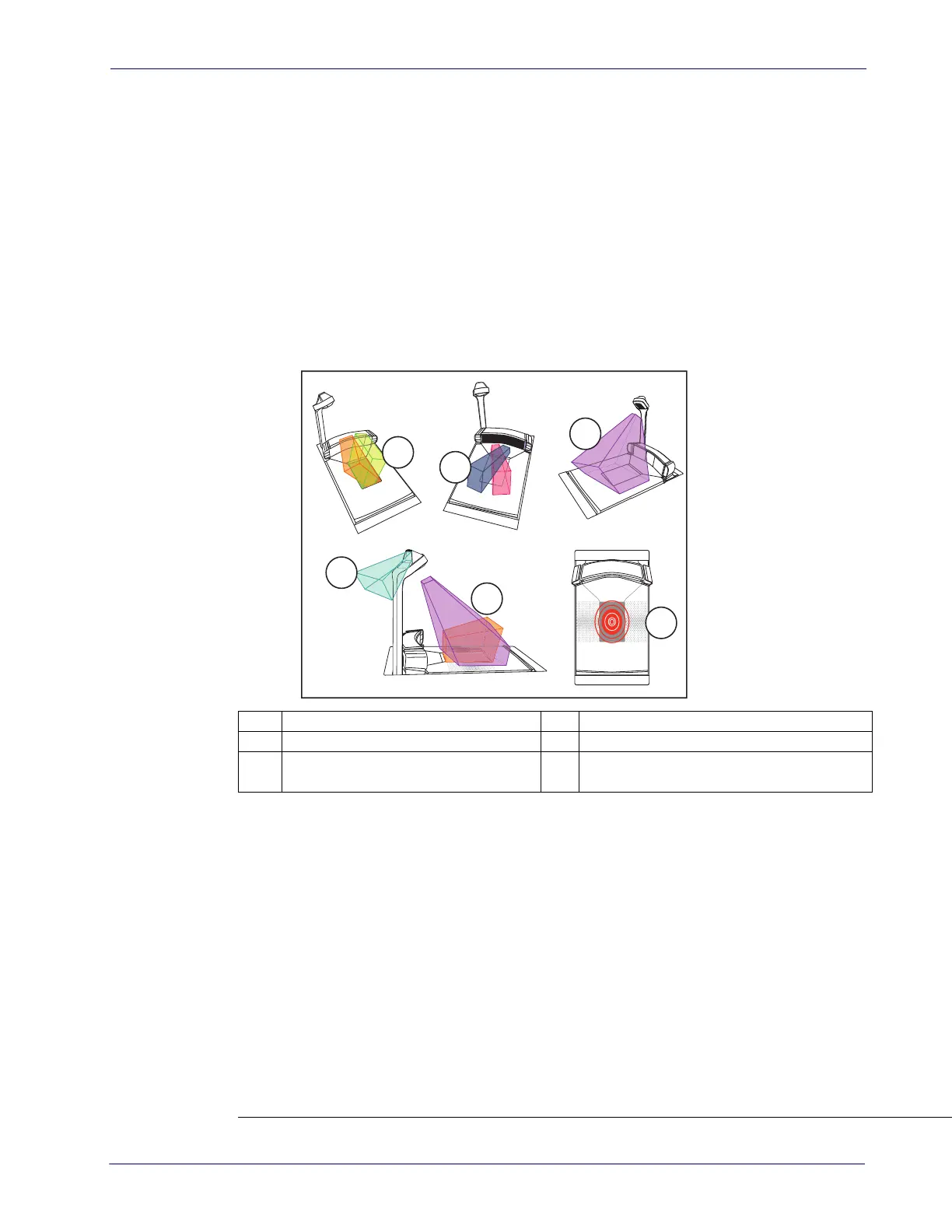

Figure 4. Scan Zone
1
Horizontal Scan Zone
4
Optional Mobile Commerce Scan Zone
2
Vertical Scan Zone
5
Combined Scan Zone
3
Optional TDR Scan Zone
6
Move items through the center of the hor-
izontal window for best scan coverage
EAS Tag Deactivation System
Scanners can be ordered from the factory to include an optional EAS (Electronic Article
Surveillance) deactivation system. Two different EAS system types are available: Checkpoint
1
and Sensormatic
2
.
The Sensormatic
®
deactivation system requires connection as shown in Figure 2a. Reference
Chapter 3, "Deactivating Security Labels" for more information about its use.
Contact Technical Support for information about installation of the Sensormatic
AMB-9010 or
ScanMaxPro EAS controller box. Additional details about
this system can be referenced under
the following topics:
• Chapter 3, "Deactivating Security Labels"
• Chapter 7, "EAS Features — Sensormatic"
1. Checkpoint is a registered trademark of Checkpoint Systems, Inc
2. Sensormatic is a registered trademark of Sensormatic Electronics Corporation.
