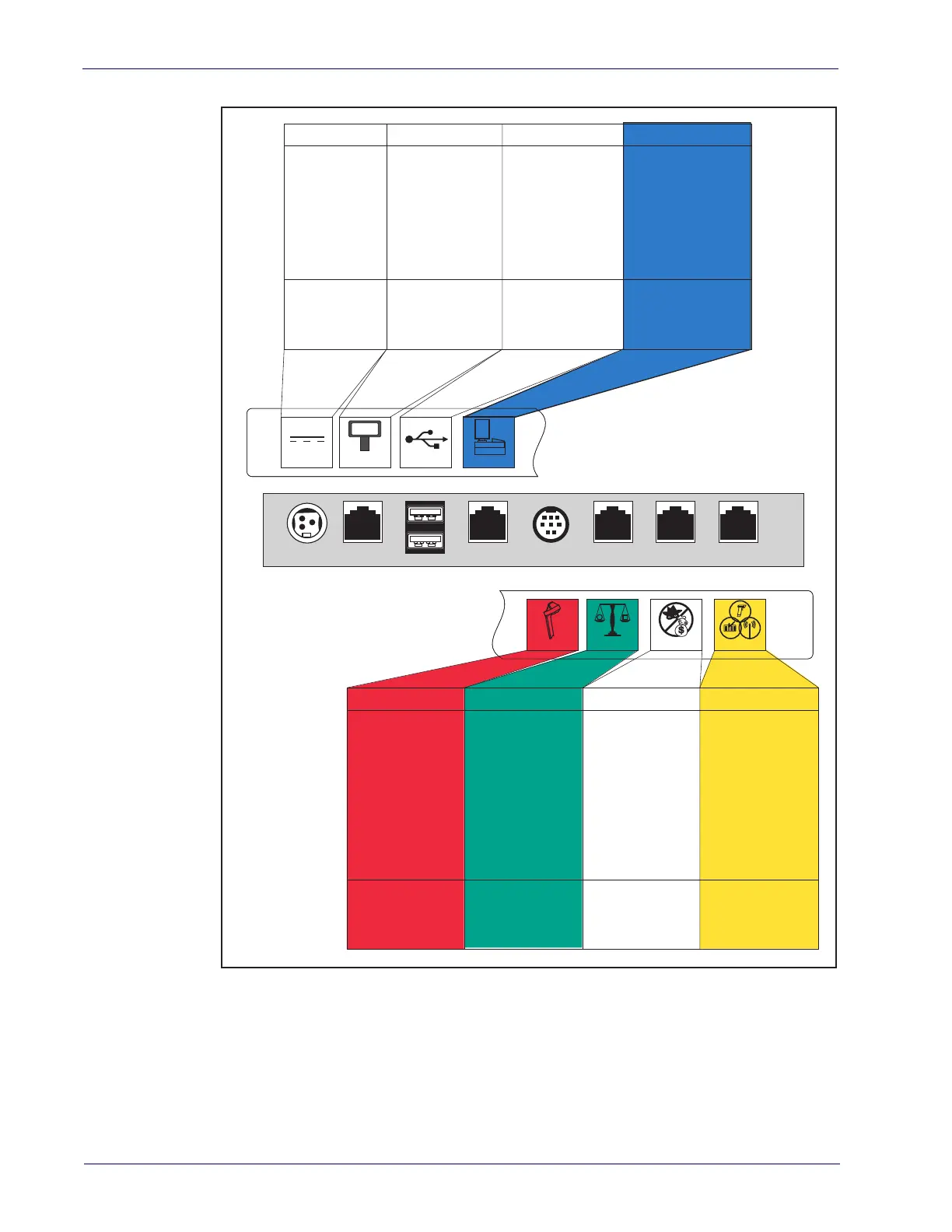

Figure 3. Connector Panel
SCALE HOSTTOP DOWN READER
Connector Bulkhead
Scale Data (dual
cable scanner/scale)
Connection to
this port is
Optional
· Expands the scan
zone by scanning an
item’s fifth side.
· E-commerce bar code
reading.
· Captures photo
images.
Dual cable units only.
(Scale connection may
be handled through
POS Terminal port)
Aux. PortEAS InterlockTDR Scale Host
Remote Display
0.00
Power POS TerminalUSB Port
HOST PORTREMOTE DISPLAYPOWER
Connection to
these ports is
Optional
AC Brick Input
OR
Power off Terminal
(POT) Brick Input
Drives Remote Display · Label Data
· Scale Data (for
single cable interfaces)
· Application Download
(where appropriate)
USB PORTS
· USB Handheld
Scanner Input
· USB-to-Serial adapter
used for scale cali-
bration testing.
Models with scale
only
AUXILIARY PORT
Connection to
this port is
Optional
Connection to
this port is
Optional
· Application Download
to attached RS-232
Handheld Scanner
· Provides Good Read
output to enable EAS
antenna RF output
EAS
