Enter/Exit Programming Mode
Product Reference Guide 207

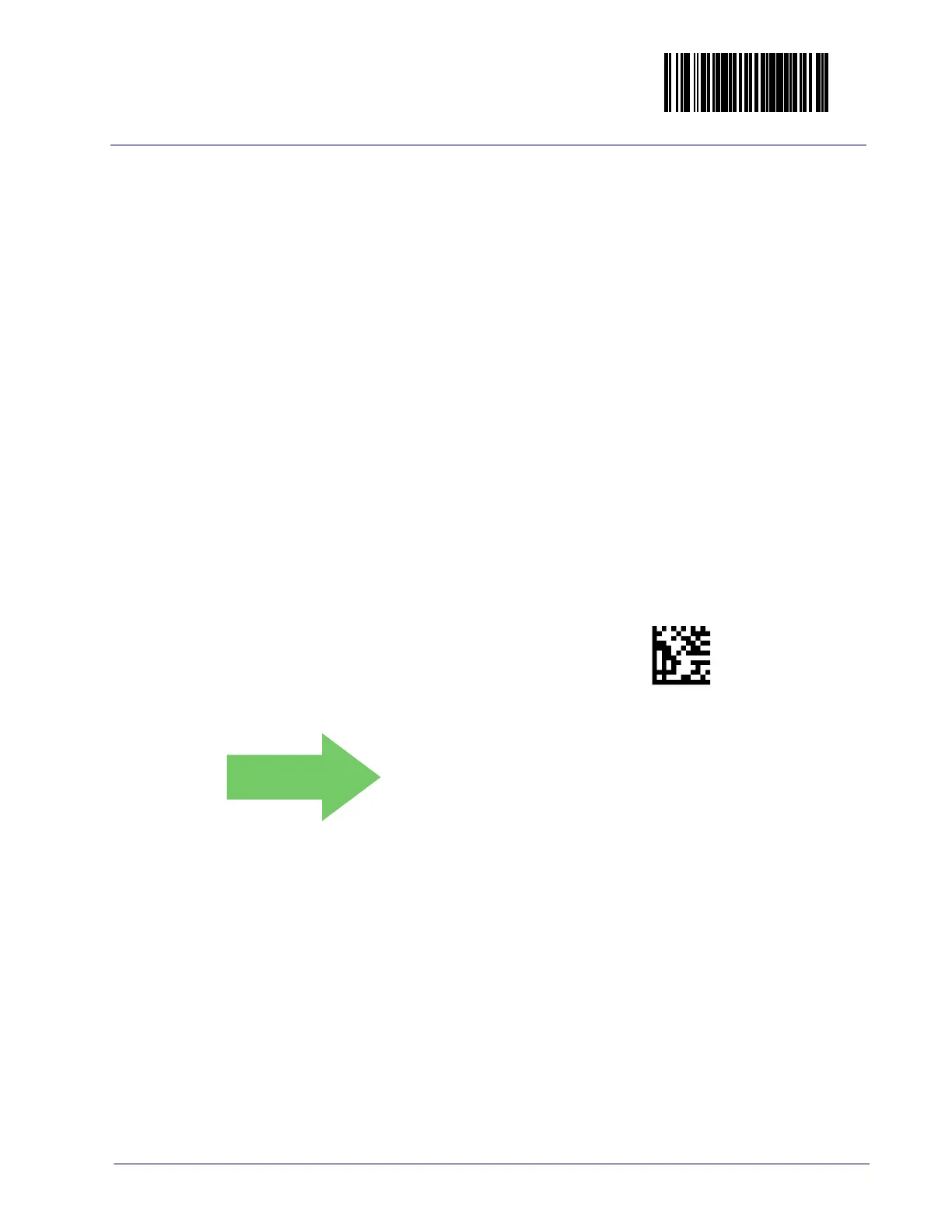

Set Single Cable RS-232 STX Character
This feature selects the STX character.
To specify the STX Character:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the bar code,
Set Single Cable RS-232 STX Character below. You’ll need to cover
any unused bar codes on this and the facing page to ensure the scanner reads only the bar
code y
ou intend to scan.
3. Scan the appropriate characters/digits from the
Keypad in Appendix C that represent the
decimal designation for the desired character. A table containing the ASCII Character S
et
and their corresponding decimal values is available in the inside back cover of this manual.
ASCII parameters must be input by scanning decimal digits for each character. Pad all
numbers with leading zeroes to yield a three-digit entry (001-127). Thus, to set a single
character value of A, bar codes containing the digits ‘0’, ‘6’ and ‘5’ must be scanned. The
selectable range for this option is any decimal value from 001 to 127.
4. The scanner will automatically exit Programming M
ode when the appropriate amount of
digits have been scanned.
0479(CR)
Set Single Cable RS-232 STX Character
DEFAULT
Default setting for this feature is:
053 - S

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
