Enter/Exit Programming Mode
370 Magellan™ 9800i Scanner

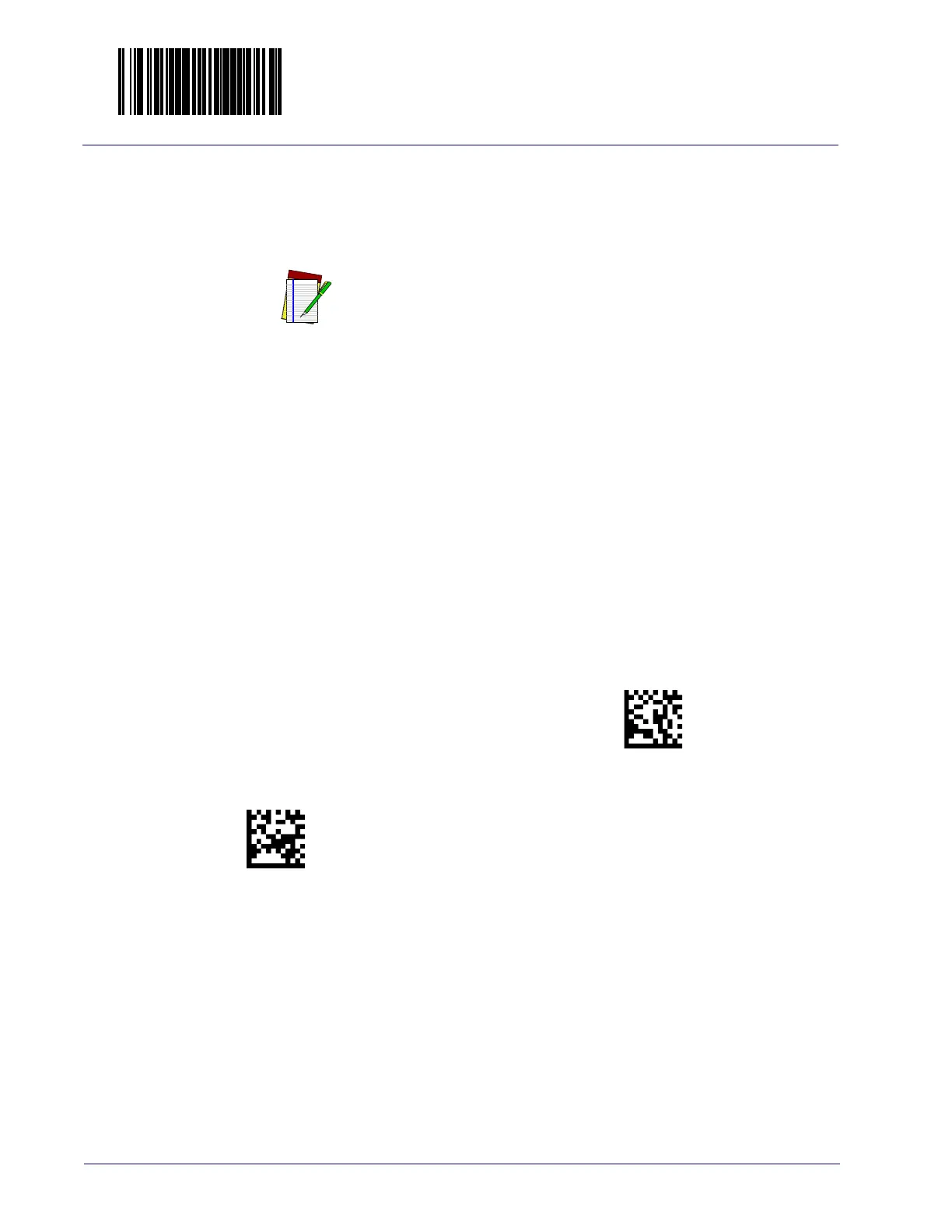

Data Matrix Length 1, Length 2 Programming Instructions
If Data Matrix Length Control is set to Fixed-Length decoding, this feature specifies Data
Matrix first fixed length. If Data Matrix Length Control is set to Variable-Length decoding, this
feature specifies the minimum label length.
NOTE
For Data Matrix bar codes, only the data characters are included in
the length calculations.
To set this feature:
1. Scan the ENTER/EXIT Programming Mode bar code.
2. Scan the barcode,
Set Data Matrix Length 1or Set Data Matrix Length 2 below. You’ll
need to cover any unused barcodes on this and
the facing page to ensure that the scanner
reads only the bar code you intend to scan.
3. Scan the appropriate digits from the
Keypad in Appendix C that represent the desired
label length. The selectable range for this option is 00
01 to 3116. Pad all numbers with
leading zeros to yield a four-digit entry (0001-3116).
4. Complete the programming sequence by scanning
the ENTER/EXIT Programming
Mode bar code.
Default setting for this feature = 0001
0103(CR)
Set Data Matrix Length 1
0104(CR)
Set Data Matrix Length 2
Default setting for this feature = 0800

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
