Processor (CPU)

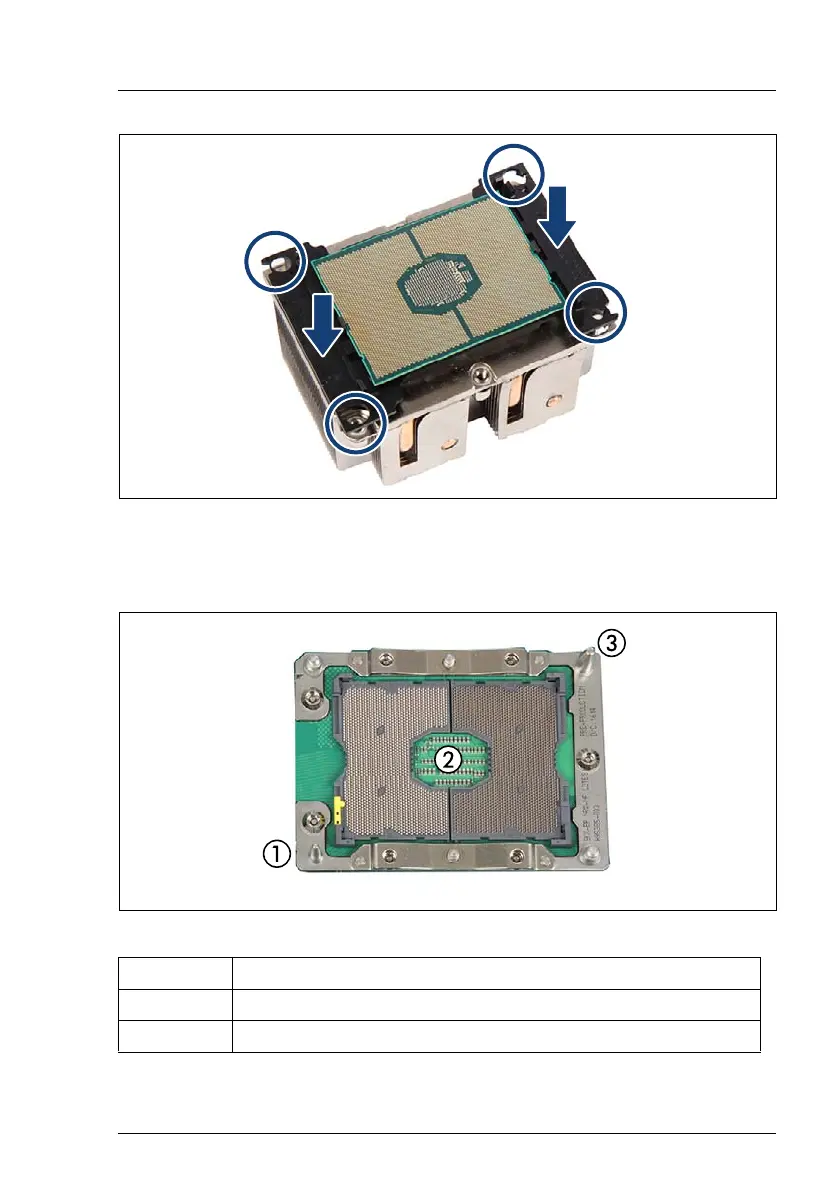

Figure 234: Installing the CPU frame on the heat sink (B)
Ê Press down the CPU frame (see arrows).
The frame must click into place (see circles).
Figure 235: Position pins
1 Thin pin
2 Empty CPU socket
3 Thick pin
