Fujitsu PRIMERGY RX2540 M4

418 Upgrade and Maintenance Manual RX2540 M4
Accessible drives

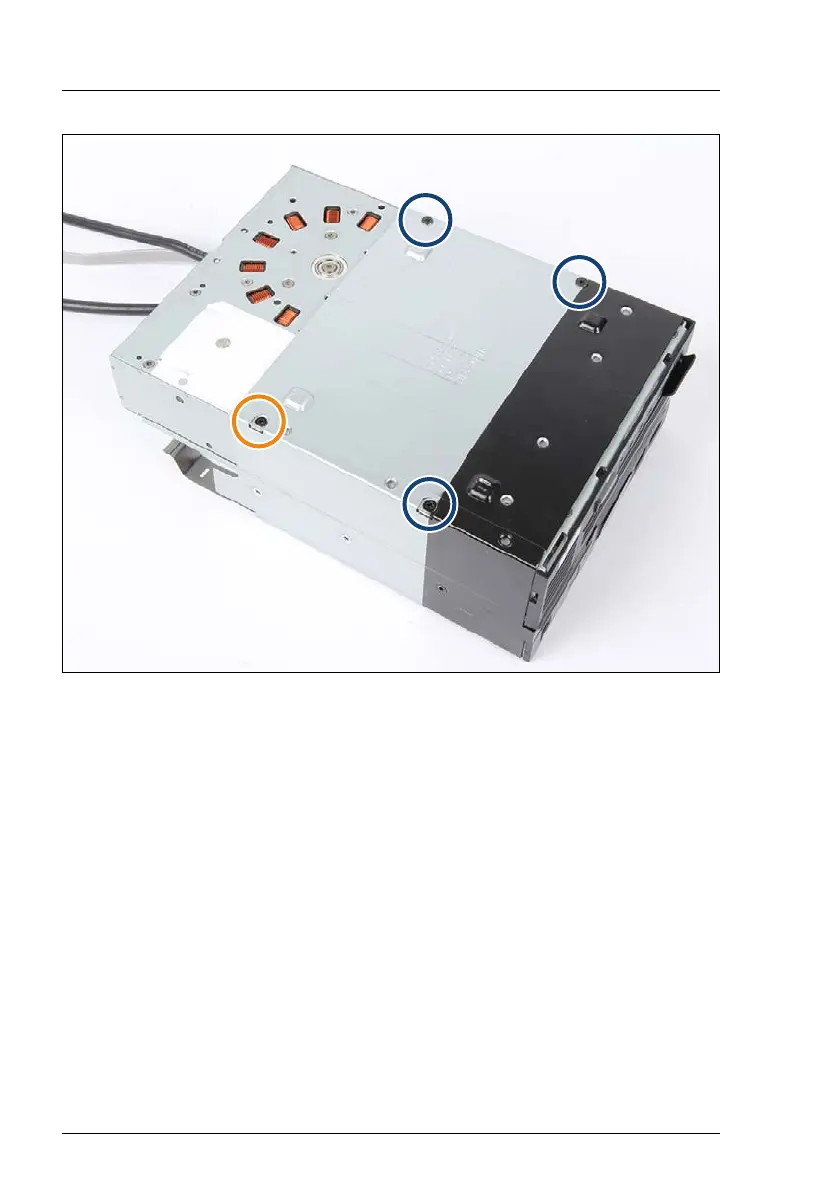

Figure 298: Installing the LTO drive (B)
Ê If applicable, fasten the LTO drive with 4 screws (see blue and orange
circles).
Ê In case of an LTO7 drive, fasten with 3 screws (see blue circles).
