RX2540 M4 Upgrade and Maintenance Manual 421
LTO drive 4/5/6/7

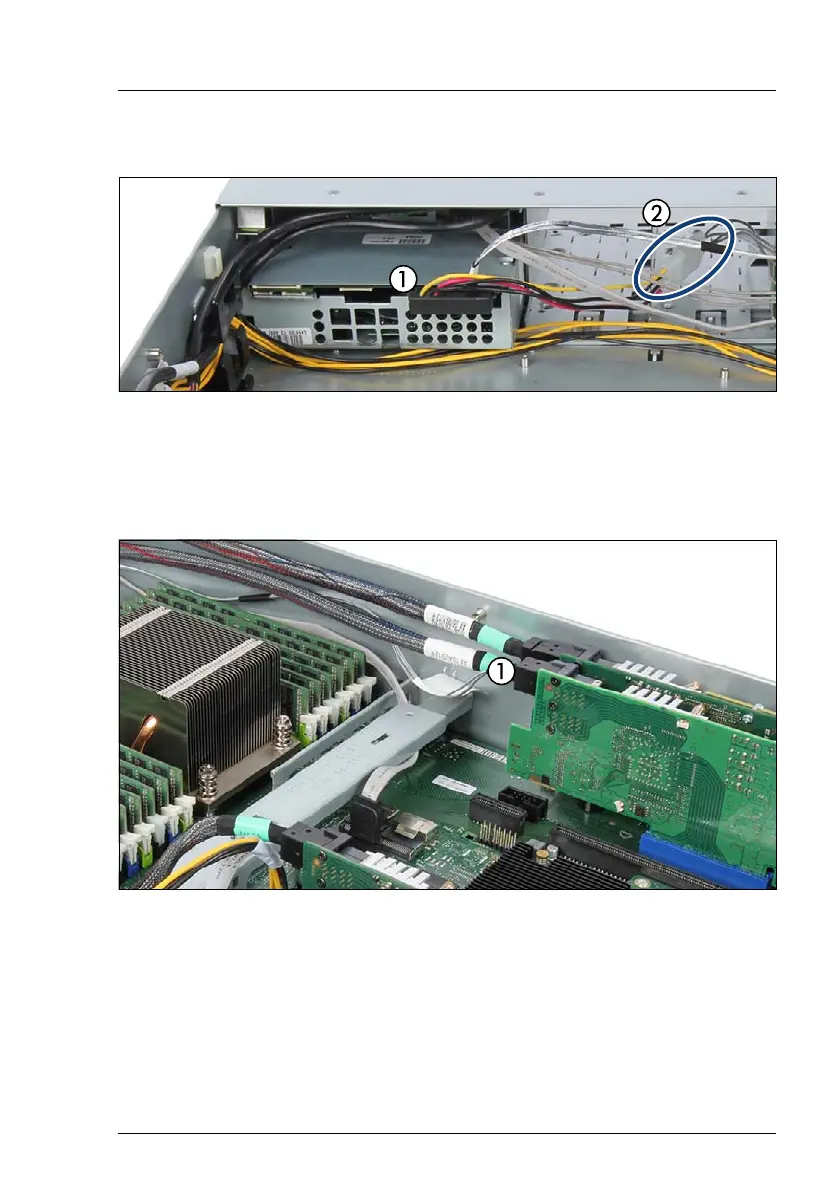

Figure 301: Connecting the cables to the LTO drive
Ê Connect the cable PWR/SAS (C36) to the LTO drive (1).
Ê Connect the power connector of the cable (C36) to the power cable (C17)
(2).
Figure 302: Connecting the cables to the PSAS controller
Ê Connect the SAS connector of cable (C36) to the "MLC1" connector of the
PSAS controller (1).
