420 Upgrade and Maintenance Manual RX2540 M4

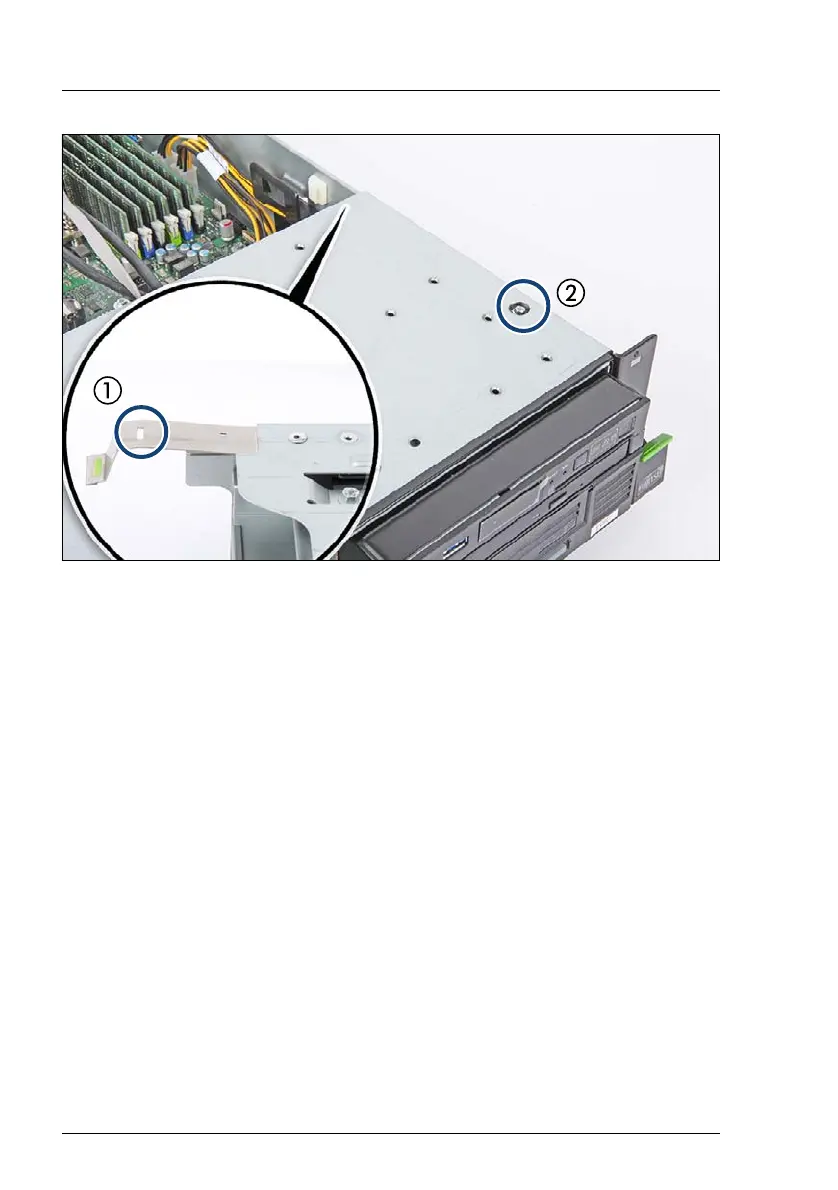

Figure 300: Installing the front panel module
Ê Take note of the marked recess in the locking lever (see close-up).
V CAUTION!
Only for installations with LTO drive:
The front of the front panel is not flat with the housing of the server
because the drive is too long.
Ê Push in the front panel cage until it is engaged firmly (1).
Ê Fasten the front panel cage with one screw (2).
