530 Upgrade and Maintenance Manual RX2540 M4
System board and components
Ê Lift up the green locking handle on the holder (see circle) and push the
holder in the direction of the arrow as it will go (1).
Ê Remove the holder from the air duct (2).
Ê Remove the air duct, see section "Removing the air duct" on page 88.
Ê Disconnect both cables (C46, C47) from the system board (see figure 392
on page 526, 1 and 2).
Removing the Dual microSD 64GB Enterprise from the riser card holder

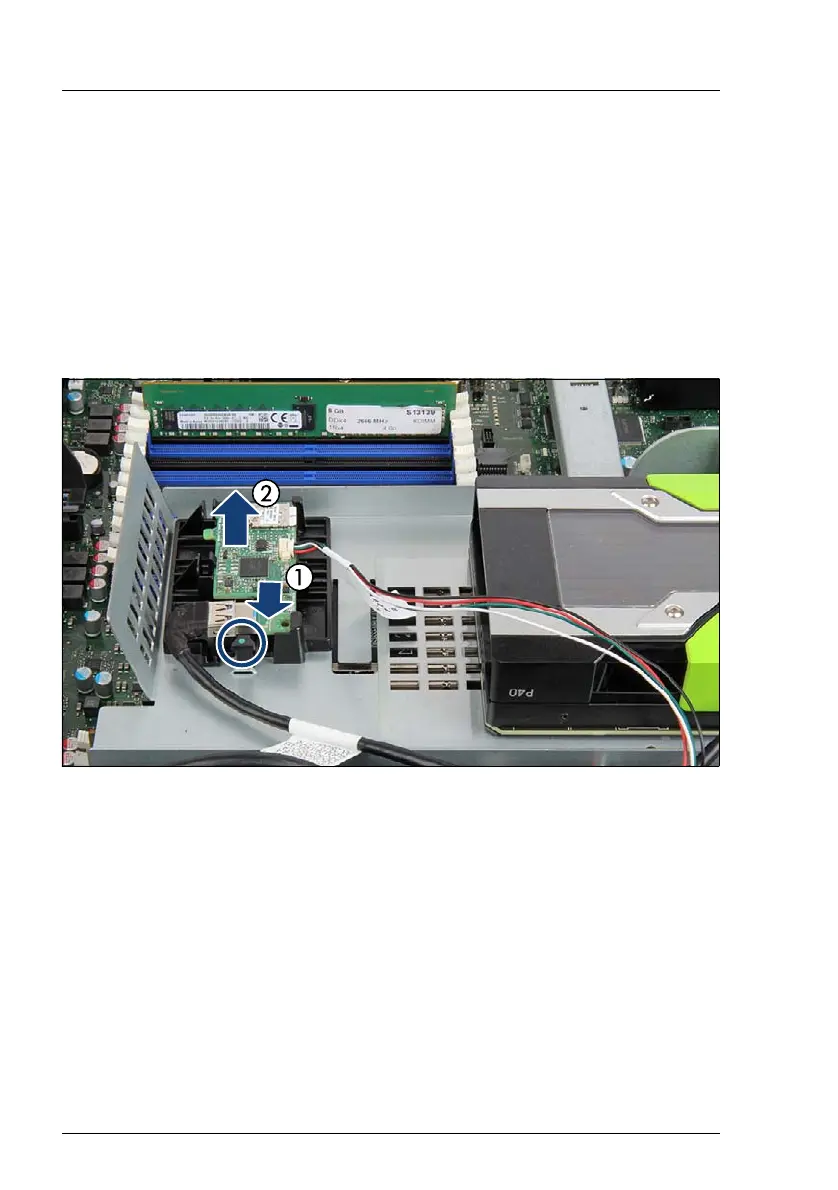

Figure 398: Removing the Dual microSD 64GB Enterprise from the riser card holder
Ê Remove the air duct, see section "Removing the air duct" on page 88.
Ê Lift up the green locking handle on the holder (see circle) and push the
holder in the direction of the arrow as it will go (1).
Ê Remove the holder from the riser card holder (2).
Ê Remove the riser module 2, see section "Removing the riser module 2 (FL)"
on page 85.
Ê Disconnect both cables (C46, C47) from the system board (see figure 392
on page 526, 1 and 2).
Ê Install the riser module 2, see section "Installing the riser module 2 (FL)" on
page 86.
