RX2540 M4 Upgrade and Maintenance Manual 531
System board and components
Removing the Dual microSD 64GB Enterprise from the holder

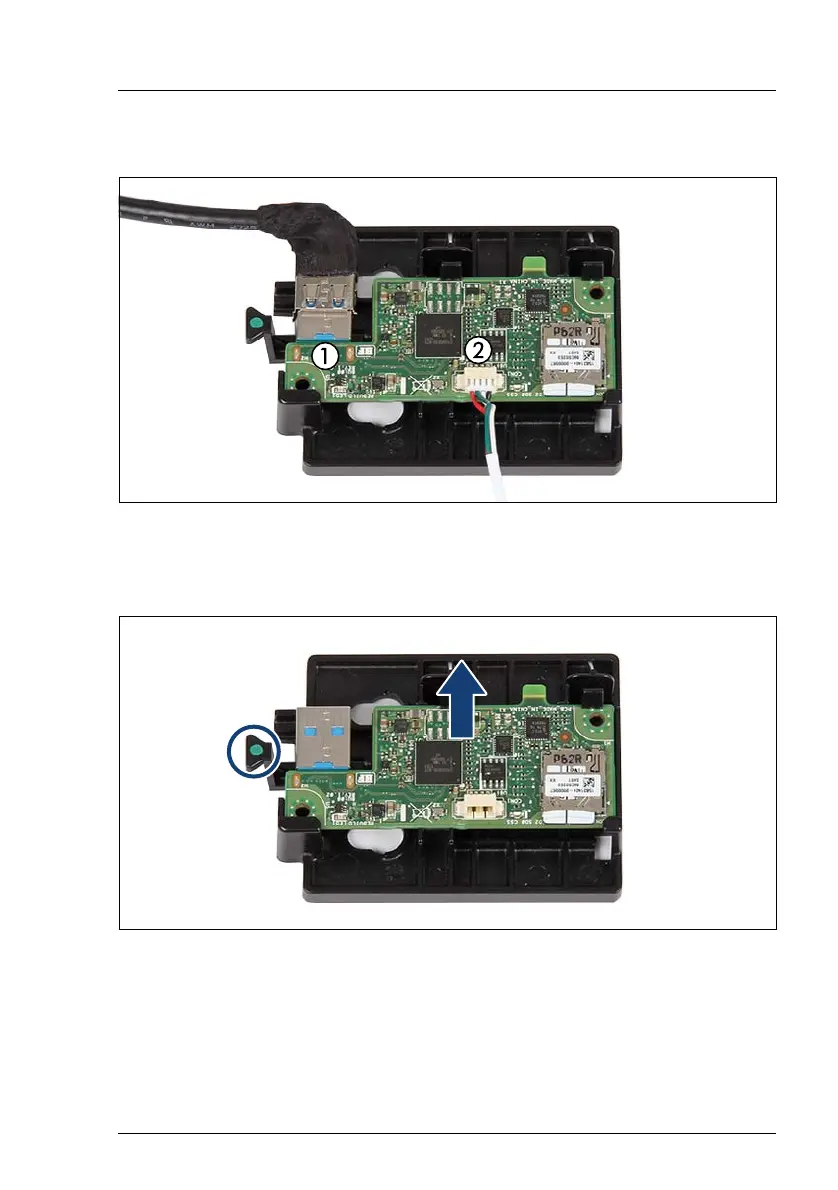

Figure 399: Disconnecting the cables from the Dual microSD 64GB Enterprise
Ê Disconnect both cables (C46, C47) from the Dual microSD 64GB Enterprise
(1, 2).
Figure 400: Removing the Dual microSD 64GB Enterprise from the holder
Ê Push on the green locking handle (see circle) and remove the Dual microSD
64GB Enterprise in a slight angle from the holder (see arrow).
