Xerox Phaser 6180MFP Service Manual

2-42 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation
Power Switch
The Power Switch turns the printer AC Power Supply On/Off.
Main Fan
The Main Fan removes heat from the printer to prevent overheating.
Electrically Erasable Programmable Read-Only Memory Board
The Electrical Erasable Programmable Read-Only Memory (EEPROM) Board
stores the machine unique information. Information on the EEPROM Board is
also stored on the Machine Control Unit (MCU) Board.
Humidity /Temperature Sensor
The Humidity/Temperature Sensor reads the humidity and temperature within
the machine.
Interlock Switch
The Interlock Switch is a switch that cuts the +24 VDC power supply to the
HVPS or Motor upon the opening of the Front Cover.

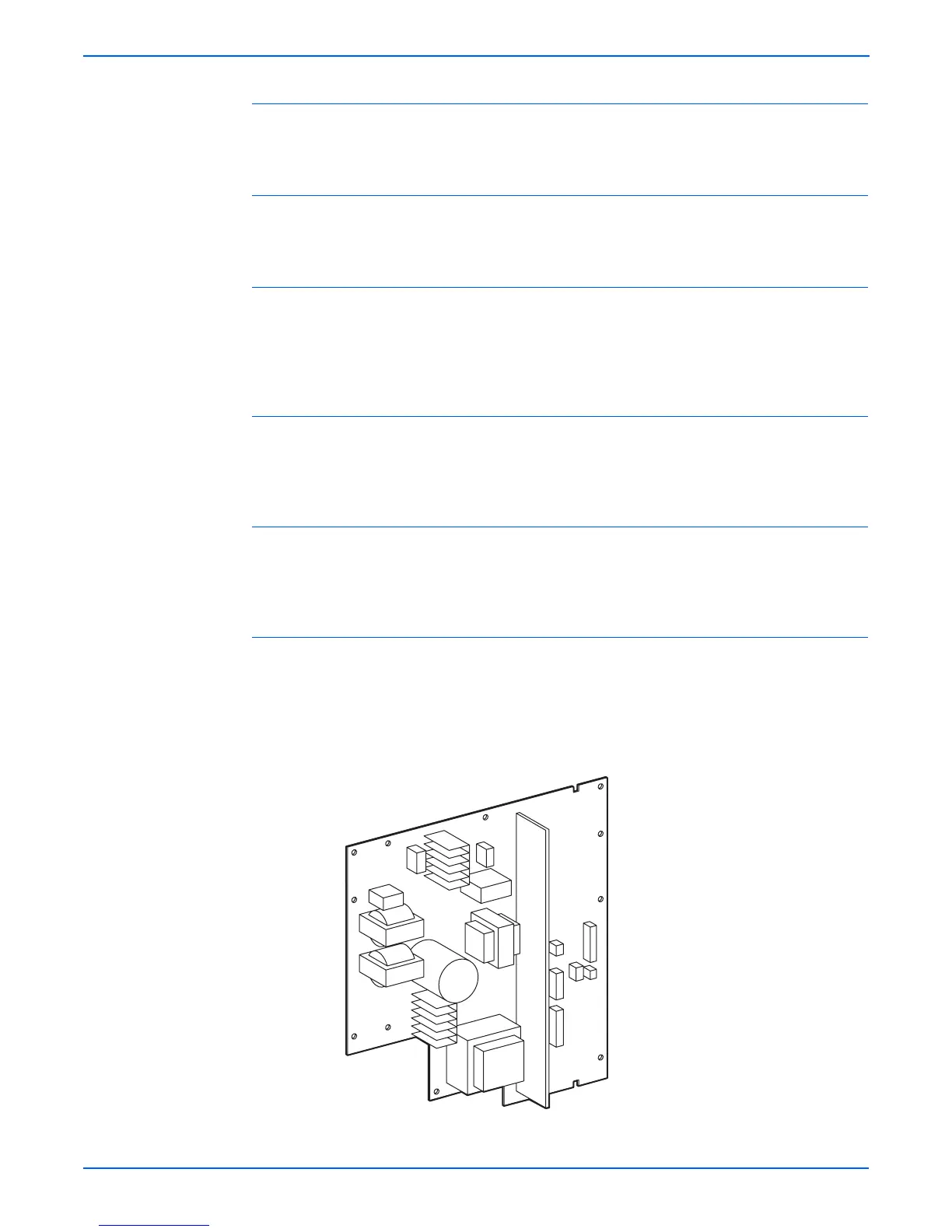

Low-Voltage Power Supply
Two types of Low-Voltage Power Supply (LVPS) are available: 100/120V and
230V. The LVPS supplies AC power from the power source to the Fuser
Heater; the LVPS also generates and supplies stable low-voltage DC power
used for the logic circuit. The LVPS contains a control circuit for the heater of
the Fuser, in addition to the power circuit.
s6180mfp-374

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
