Phaser 6180MFP Multifunction Printer Service Manual 2-43
Theory of Operation

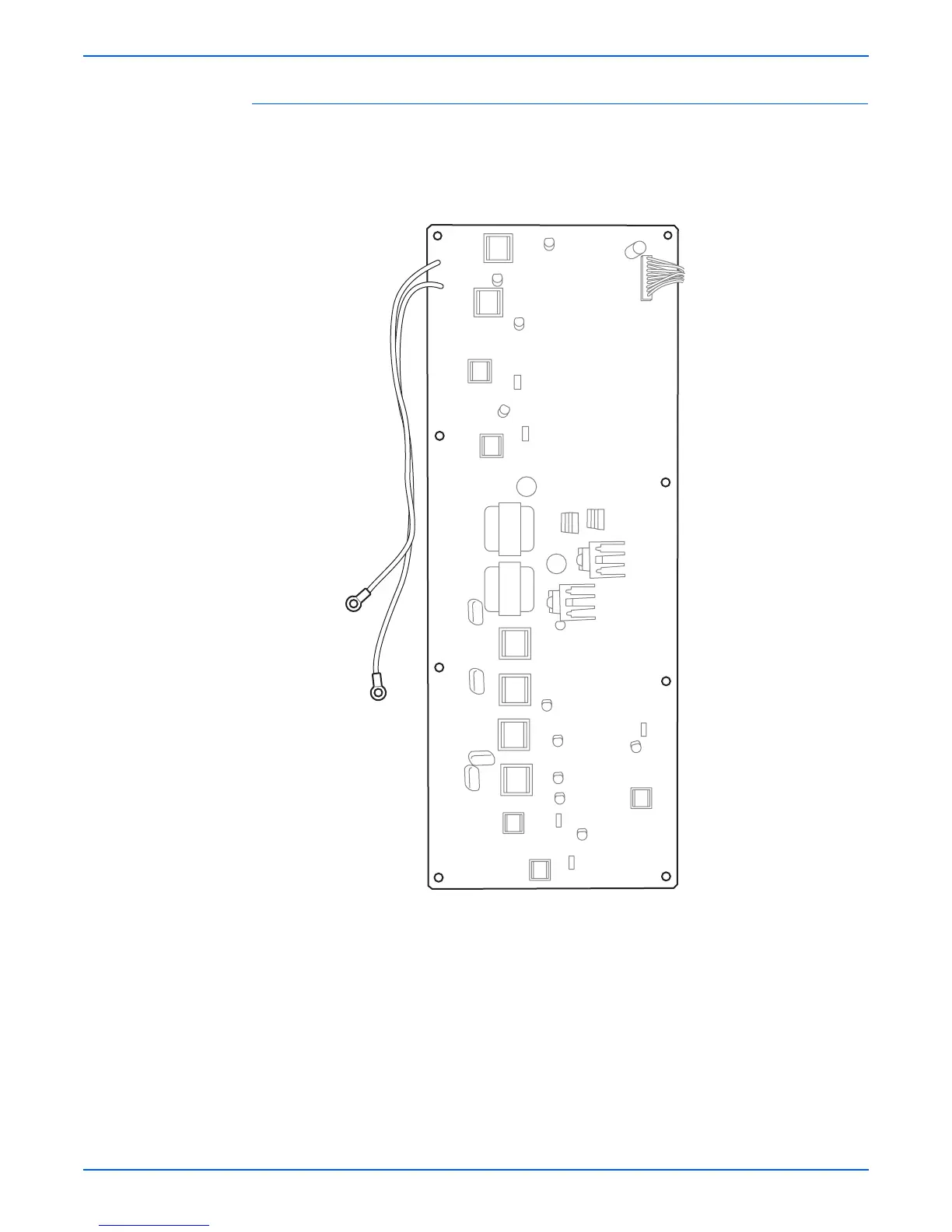

High-Voltage Power Supply
The High-Voltage Power Supply (HVPS) provides high-voltage power to the
components in the Transfer Unit and Print Cartridge to perform charging,
development, and primary transfer of the print process to the BCR, BTR,
Developer, and ESA Roller.
s6180mfp-152
