Xerox Phaser 6180MFP Service Manual

2-44 Phaser 6180MFP Multifunction Printer Service Manual
Theory of Operation

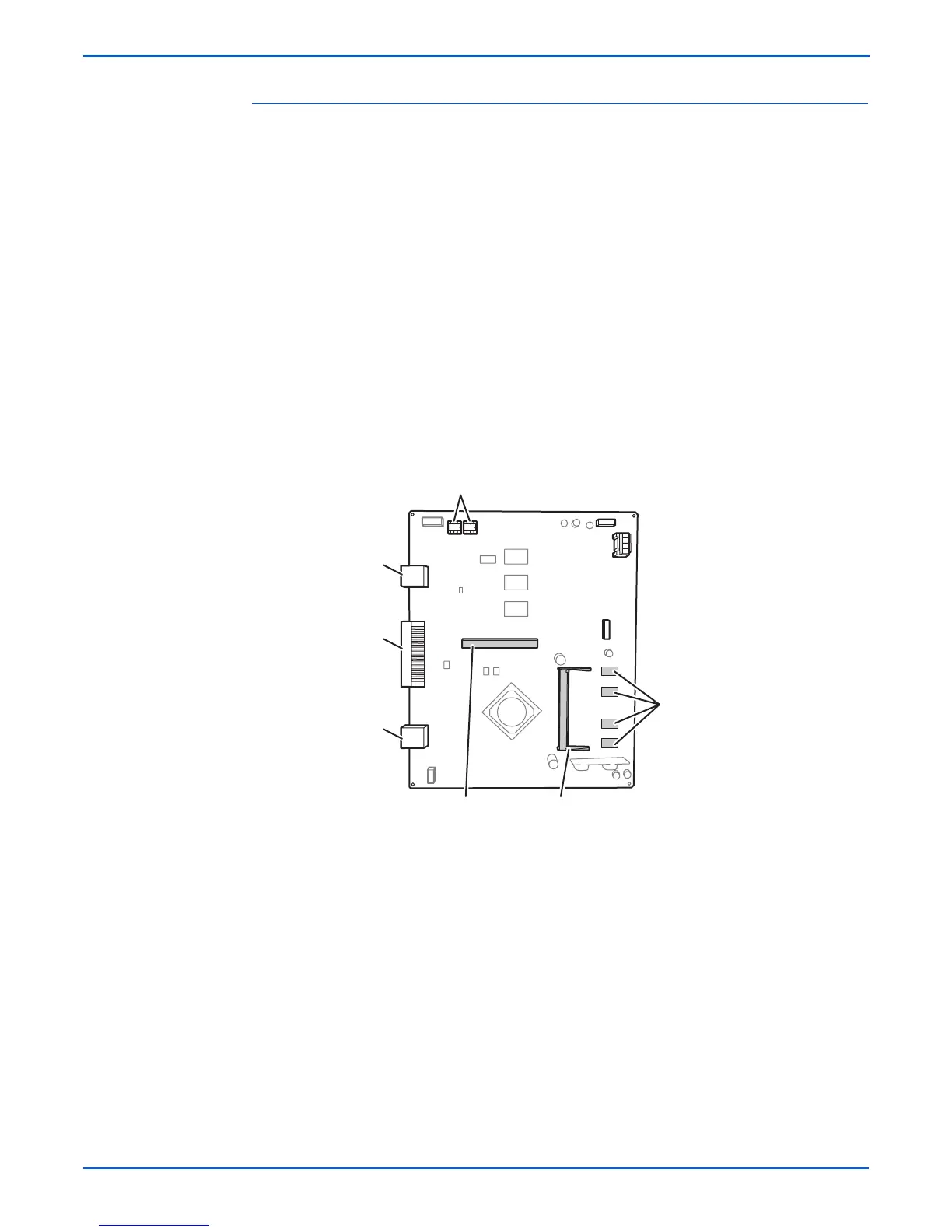

Image Processor Board
The Image Processor (I/P) Board is connected to the MCU Board, which
controls the printer, including Diagnostic, Interface, and Image
Processing.
The I/P Board is one of the major elements of the Phaser 6180MFP.
The primary function of the I/P Board is to receive host data through one
of the following available ports (Parallel, USB, or Ethernet). The received
host data is buffered, stored, and sent to the print engine in a rasterized
format.
1. Standard Memory (384 MB on-board RAM)
2. Optional Memory DIMM (should be swapped)
3. Multi-Protocol Network Card Connection
4. NVRAM
5. Ethernet Connection
6. PC Interface Connection (Parallel)
7. USB Connection
When installing a new I/P Board in the printer, you must transfer the
following parts from the old board to the new board:
■ Memory DIMM (if installed)
■ NVRAM
■ Multi-Protocol Network Card (if installed)
1
2
3
s6180mfp-153
4
5
6
7

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
