4-42 Phaser 6180MFP Multifunction Printer Service Manual
General Troubleshooting
Exit Sensor
W
arn
i
ng
Ensure to wait for the Fuser to cool down before starting the procedure.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-9).
4. Perform the Exit Sensor test: Printer Diag > Engine Diag > Sensor Test
> Exit Sensor > OK.

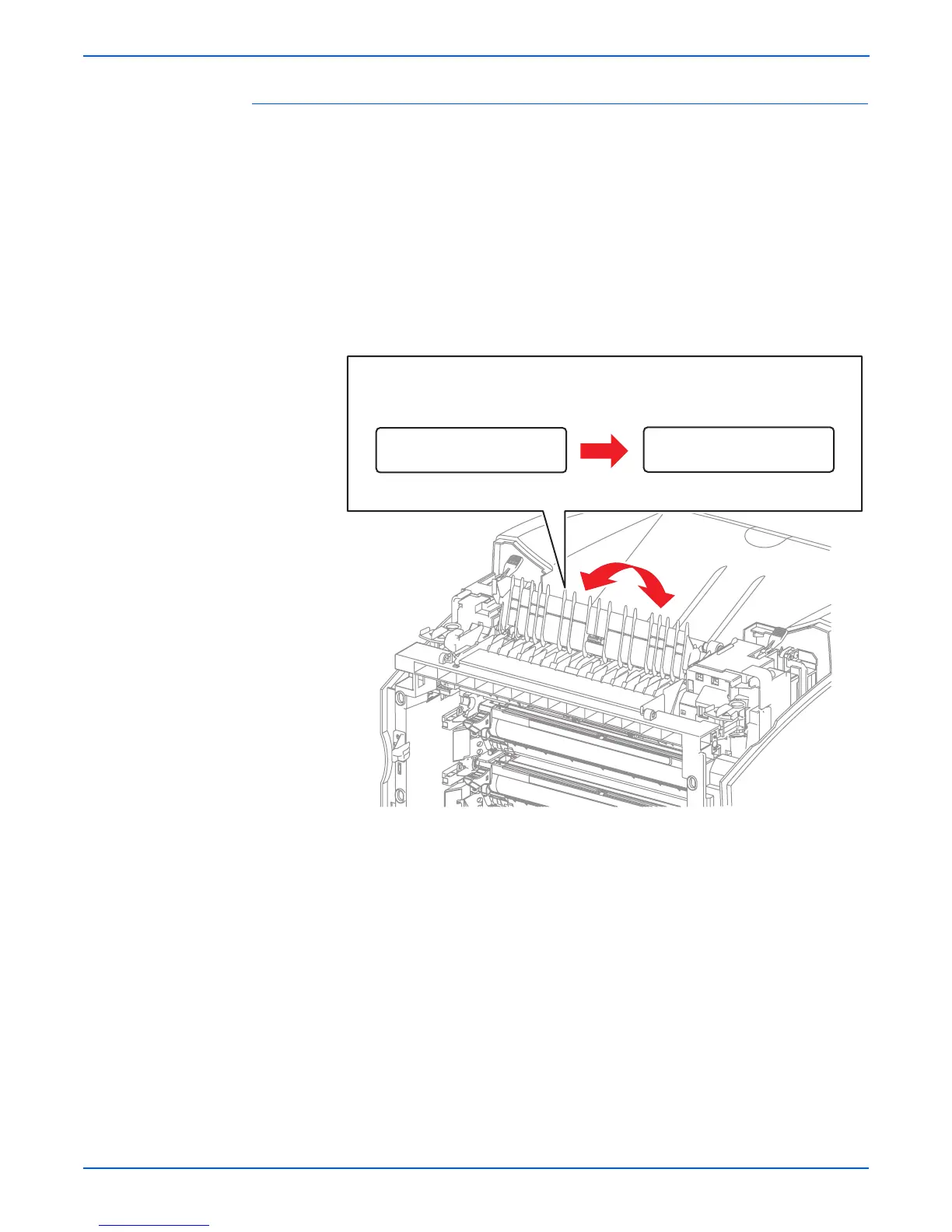

5. Move the Sensor up and down and check the information on the Control
Panel display. The Low and High values change from 0 up to 99.
6. Press the Stop button to stop the Exit Sensor test.
s6180mfp-161
Control Panel
Normal
Exit Sensor
L-0
Exit Sensor
H-0
