Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 4-43
General Troubleshooting
Regi Sensor
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 2.
3. Perform the Regi Sensor test: Printer Diag > Engine Diag > Sensor
Test > Regi Sensor > OK.
4. Insert one sheet of paper in between the Registration Chute and the Turn
Clutch until the paper stops.
5. Slowly pull out the sheet of paper while checking the information on the
Control Panel display. The Low and High values change from 0 up to 99.
6. Press the Stop button to stop the Regi Sensor test.

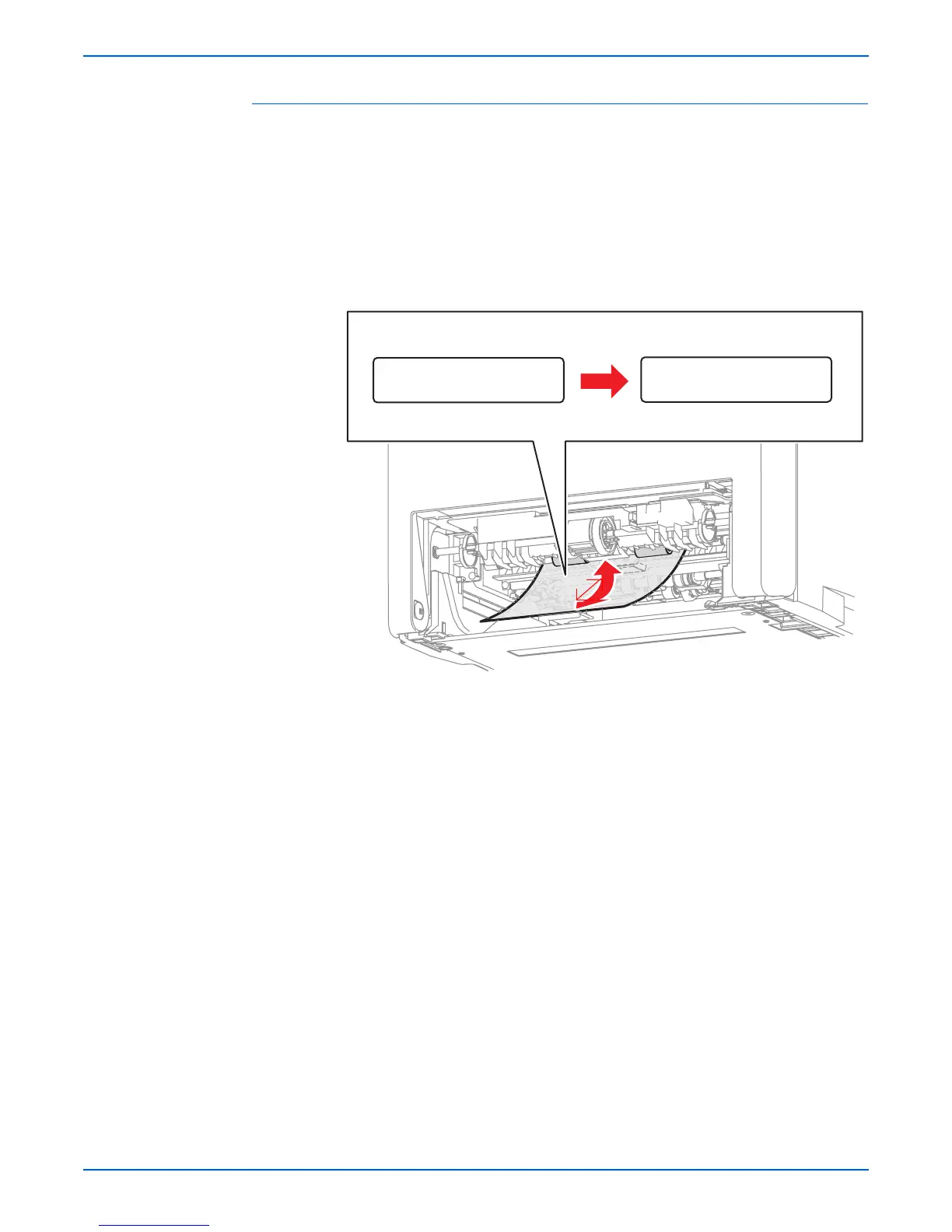

s6180mfp-162
Regi Sensor
L-0
Regi Sensor
H-0
Control Panel
Normal

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
