General Troubleshooting
Tray 3 No Paper
o
e
The Tray 3 No Paper Sensor is located in the Optional 550-Sheet Feeder.
1. Enter the Service Diagnostic menu (page 4-5).
2. Perform the Tray 3 No Paper test: Printer Diag > Engine Diag > Sensor
Test > Tray 3 No Paper > OK.
3. Remove Tray 3.
4. Move the Tray 3 Low Paper sensor up and down while checking the
information on the Control Panel display. The Low and High values
change from 0 up to 99.
5. Press the Stop button to stop the Tray 3 No Paper test.

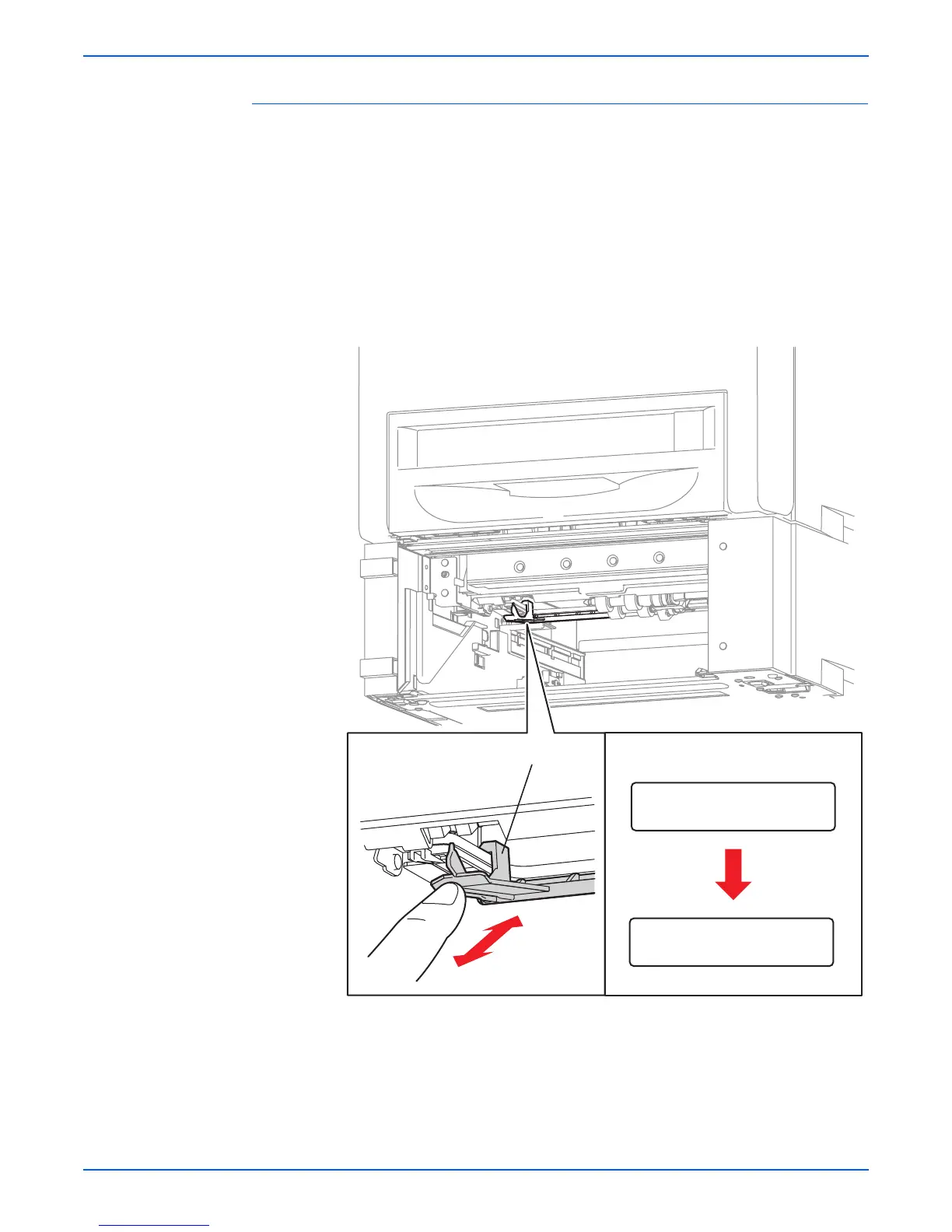

s6180mfp-168
Control PanelActuator
Normal
Tray 3 NoPaper
L-0
Tray 3 NoPaper
H-0
