Xerox Phaser 6180MFP Service Manual

4-50 Phaser 6180MFP Multifunction Printer Service Manual
General Troubleshooting
Tray 1 (MPT) No Paper
N
o
t
e
Ensure to remove paper from the Tray 1 (MPT) prior performing the test.
1. Enter the Service Diagnostic menu (page 4-5).
2. Perform the MPT No Paper test: Printer Diag > Engine Diag > Sensor
Test > MPT No Paper > OK.
3. Open Tray 1 (MPT).
4. Move the Actuator back and forth while checking the information on the
Control Panel display. The Low and High values change from 0 up to 99.
5. Press the Stop button to stop the Tray 1 No Paper test.

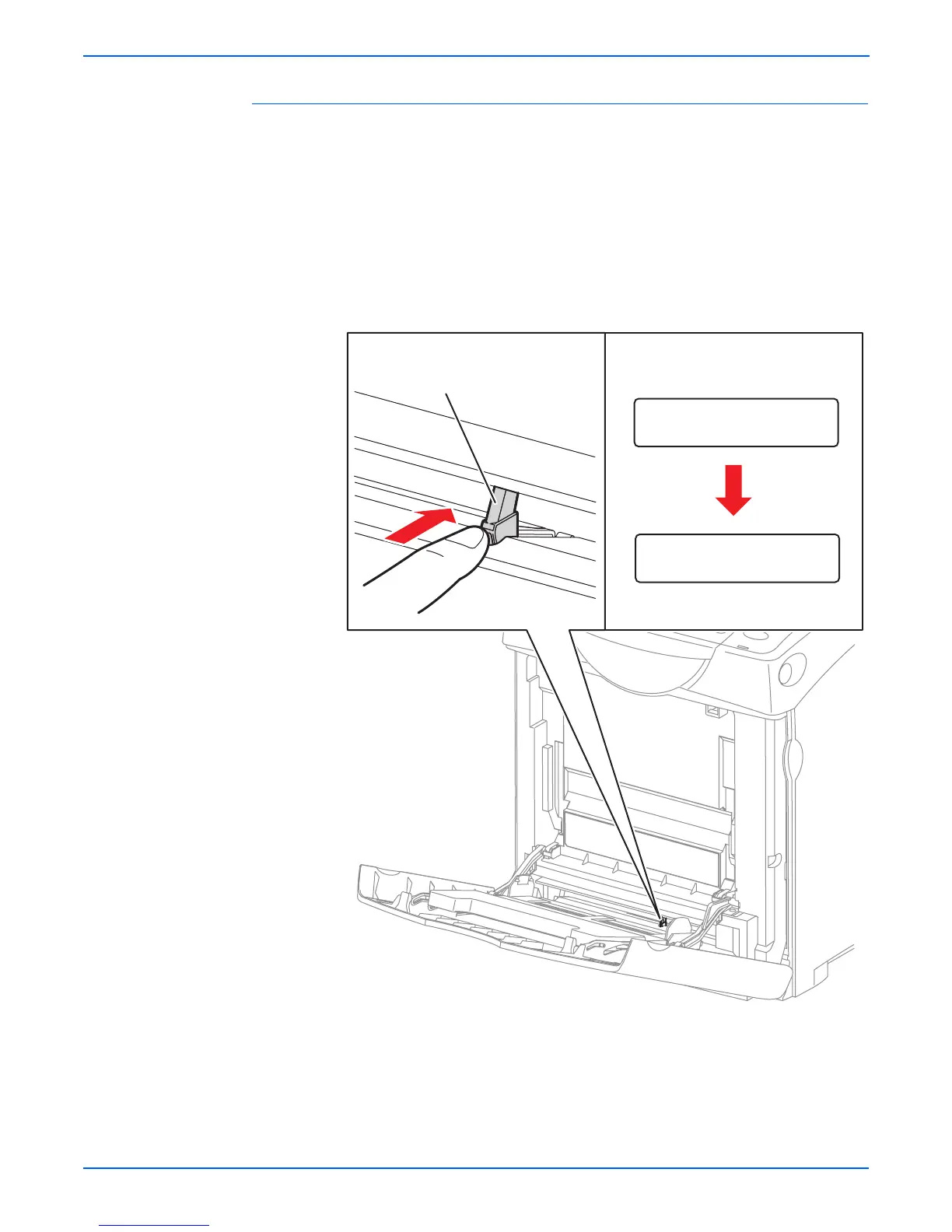

s6180mfp-169
Actuator
Control Panel
Normal
MPT No Paper
L-0
MPT No Paper
H-0
