Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 4-57
General Troubleshooting
Deve Motor (FULL2/FULL1/HALF)
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light if the Front Door will be opened for prolonged
periods.
N
o
t
e
The Deve Motor is located in the Main Drive. The rotational speed of the
Deve Motor is as follows:
■ HALF < FULL1 < FULL2
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-9).
4. Remove the Print Cartridges (page 8-11).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Deve Motor (FULL2/FULL1/HALF) test: Printer Diag >
Engine Diag > Motor Test > Deve Motor (FULL2/FULL1/HALF).

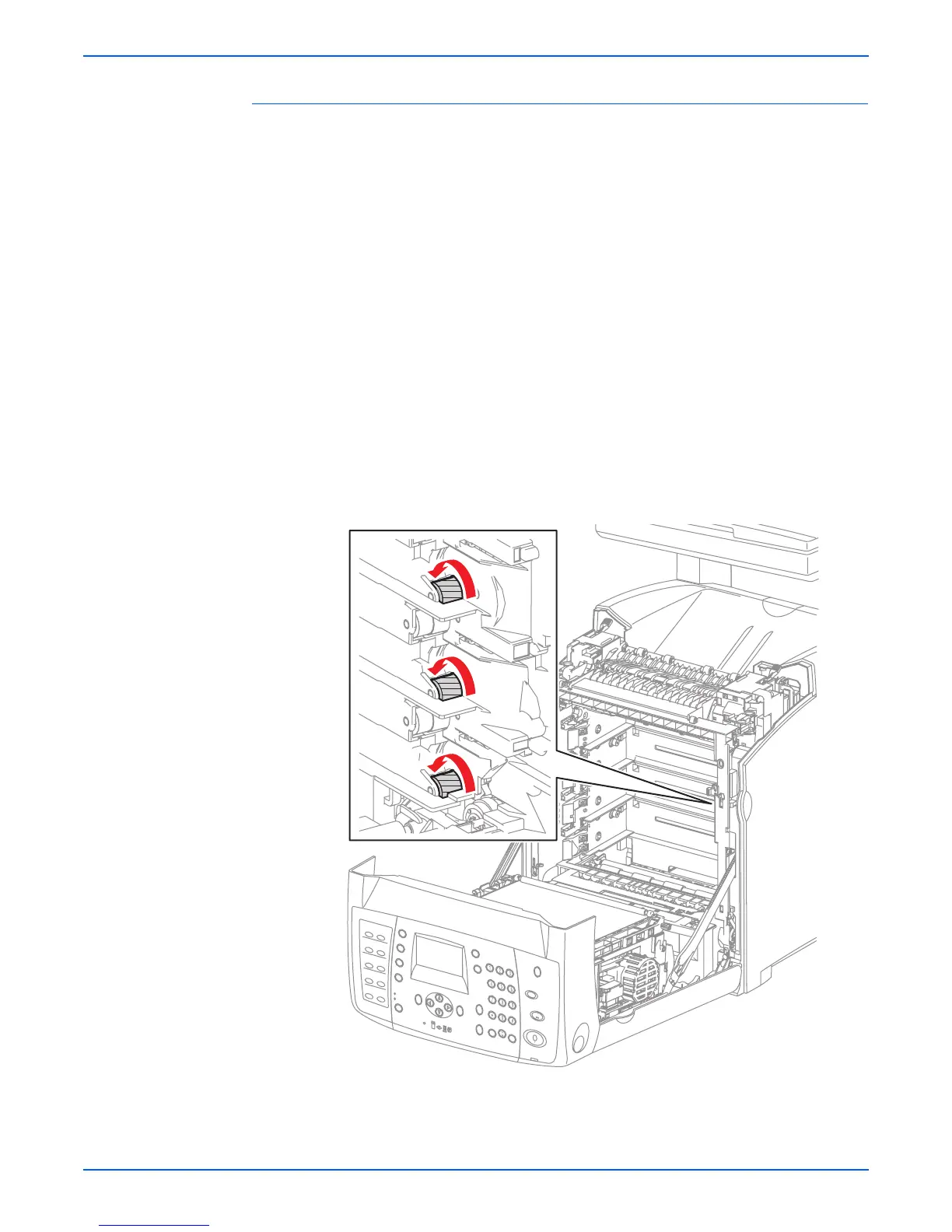

7. Verify that the Deve Motor is running and the three gears are rotating.
8. Press the Stop button to stop the Deve Motor test.
9. Remove the paper clip from the Interlock Switch.
s6180mfp-176

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
