Xerox Phaser 6180MFP Service Manual

4-58 Phaser 6180MFP Multifunction Printer Service Manual
General Troubleshooting
Duplex Motor (HIGH/FULL2/FULL1/HALF/LOW)
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light if the Front Door will be opened for prolonged
periods.
N
o
t
e
The Duplex Motor is located in the Duplex Unit. The rotational speed of
the Duplex Motor is as follows:
■ LOW < HALF < FULL1 < FULL2 < HIGH
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-9).
4. Remove the Print Cartridges (page 8-11).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Duplex Motor (HIGH/FULL2/FULL1/HALF/LOW) test: Printer
Diag > Engine Diag > Motor Test > Duplex Motor (HIGH/FULL2/
FULL1/HALF/LOW).
7. Verify that the Duplex Motor is running and the four Duplex Rollers are
rotating.
8. Press the Stop button to stop the Duplex Motor test.
9. Remove the paper clip from the Interlock Switch.
s6180mfp-177

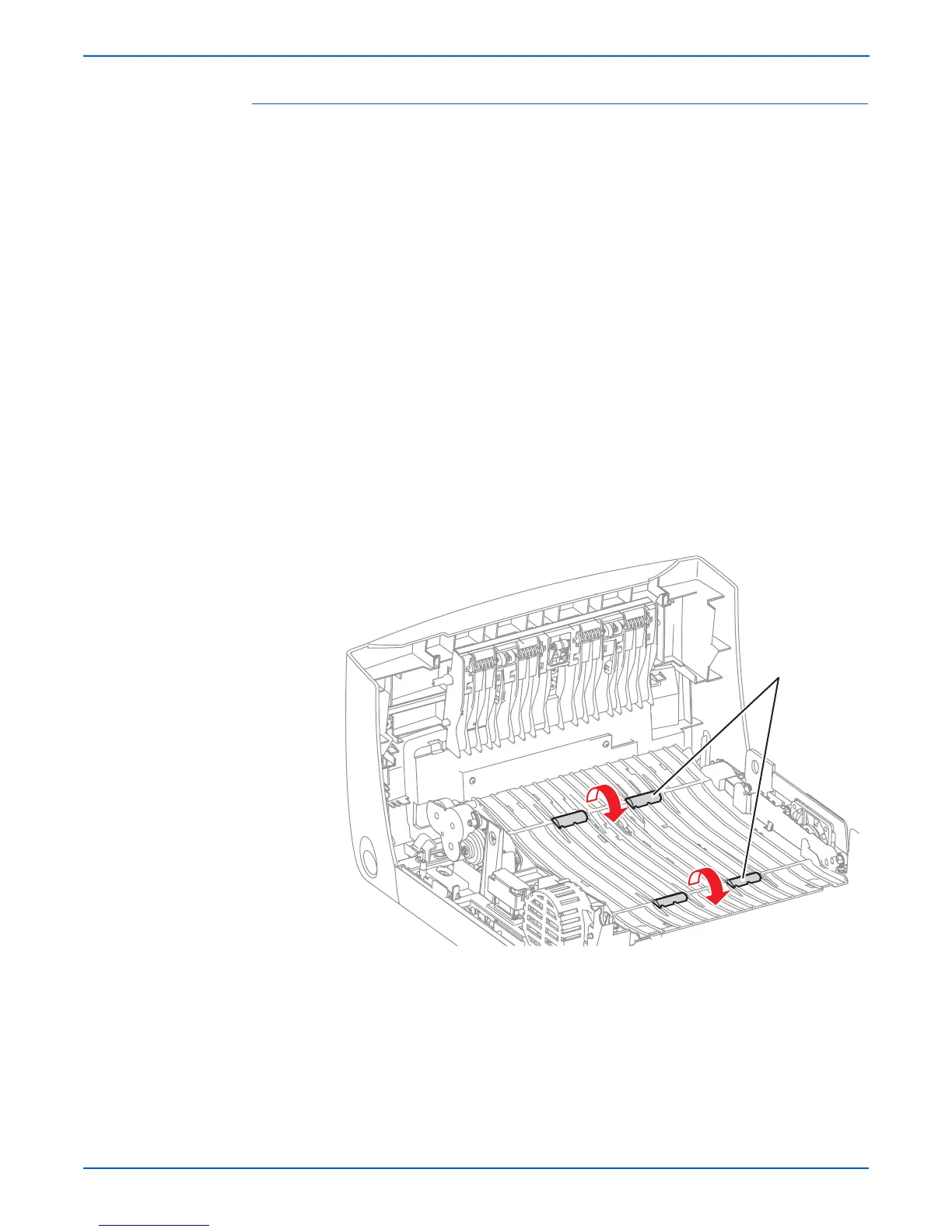

Duplex Rollers
