Phaser 6180MFP Multifunction Printer Service Manual 4-59
General Troubleshooting
Tray 3 Feed Motor (FULL2/FULL1/HALF/LOW)
N
o
t
e
The rotational speed of the Motor is as follows:
■ LOW < HALF < FULL2 < FULL1
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 3.
3. Remove the Tray 3 Left Cover (page 8-117).
4. Perform the Tray 3 Feed Motor (FULL2/FULL1/HALF/LOW) test: Printer
Diag > Engine Diag > Motor Test > Tray 3 Feed Motor (FULL2/FULL1/
HALF/LOW).
5. Verify that the Tray 3 Feed Motor is running.
6. Press the Stop button to stop the Tray 3 Feed Motor test.

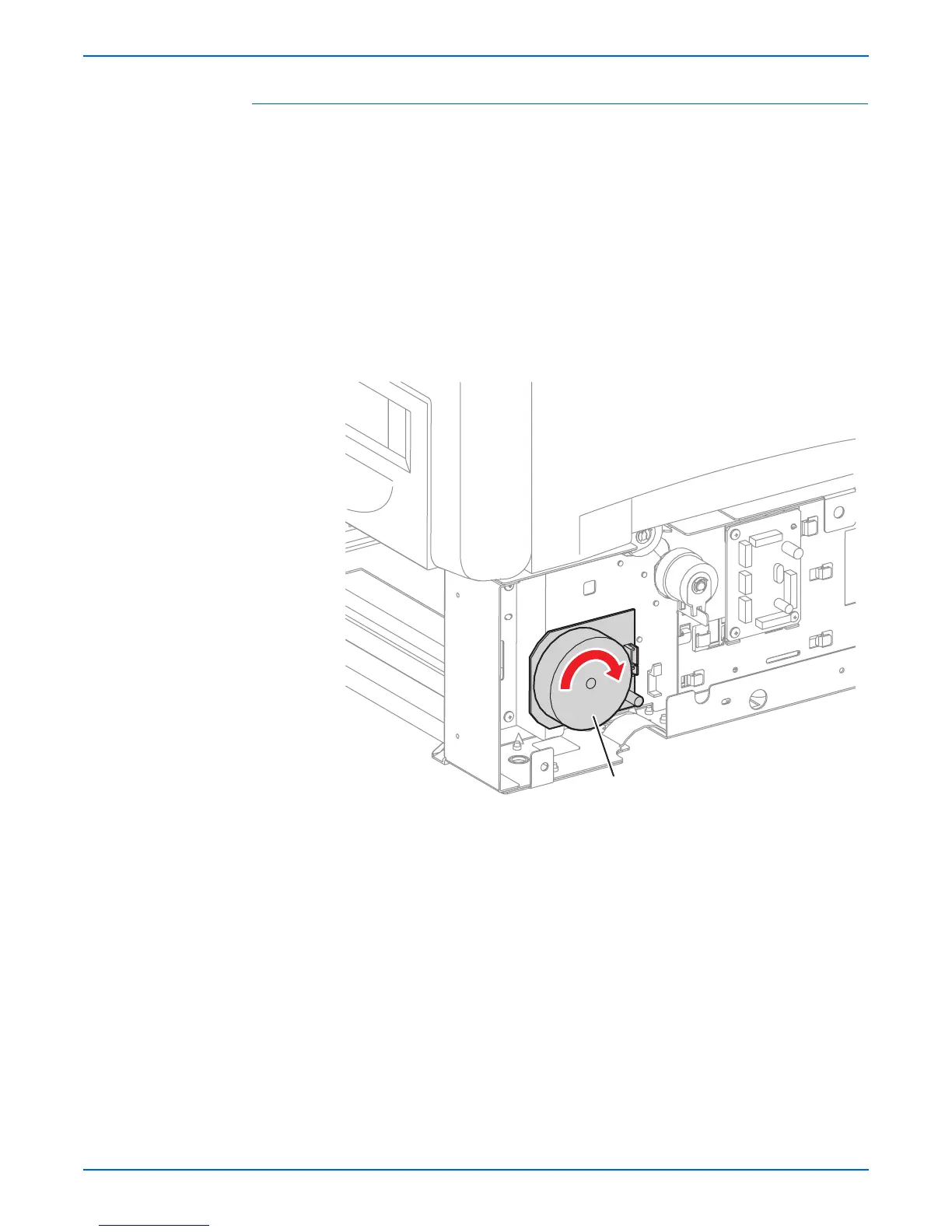

s6180mfp-178
Tray 3 Feed Motor

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
