Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 8-53
Service Parts Disassembly

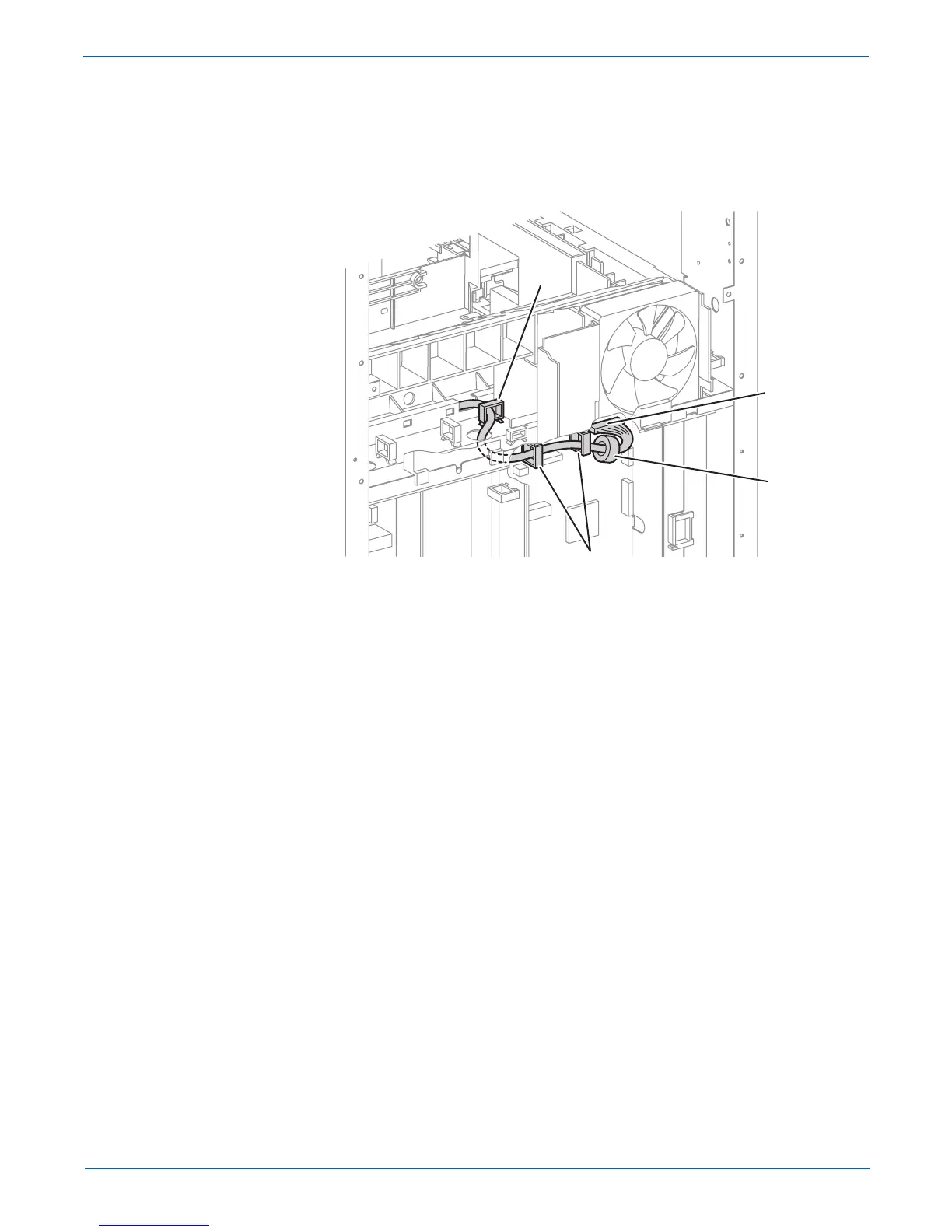

17. Remove the 2 Clamps on the Fuser wiring harness from the Earth Frame
Assembly.
18. Disconnect the Laser Unit connector P/J12 from the MCU Board
(PL9.2.13) and remove the Ferrite Core (PL5.1.13) from the harness.
19. Release the Laser Unit wiring harness from the 3 clamps and pull the
wiring harness from the hole of the printer.
s6180mfp-286
P/J12
Ferrite
Clamps
Clamp

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
