8-54 Phaser 6180MFP Multifunction Printer Service Manual
Service Parts Disassembly

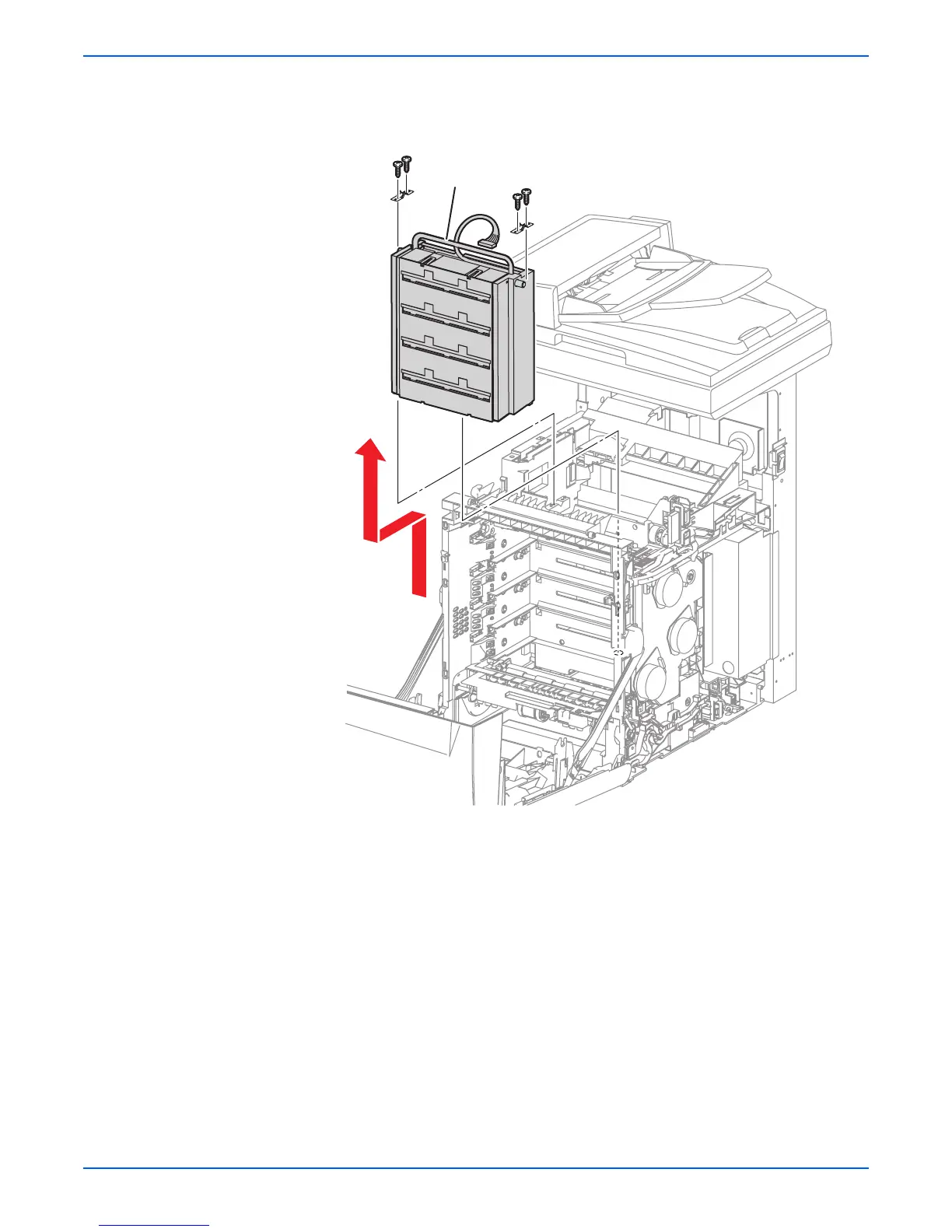

20. Remove 4 screws (10 mm) securing the 2 Laser Unit springs (PL5.1.11)
to the left and right sides of the printer and remove the Springs.
21. Slowly pull up the Laser Unit from the printer using the handle.
s6180mfp-287
Handle
