Phaser 6180MFP Multifunction Printer Service Manual 8-79
Service Parts Disassembly

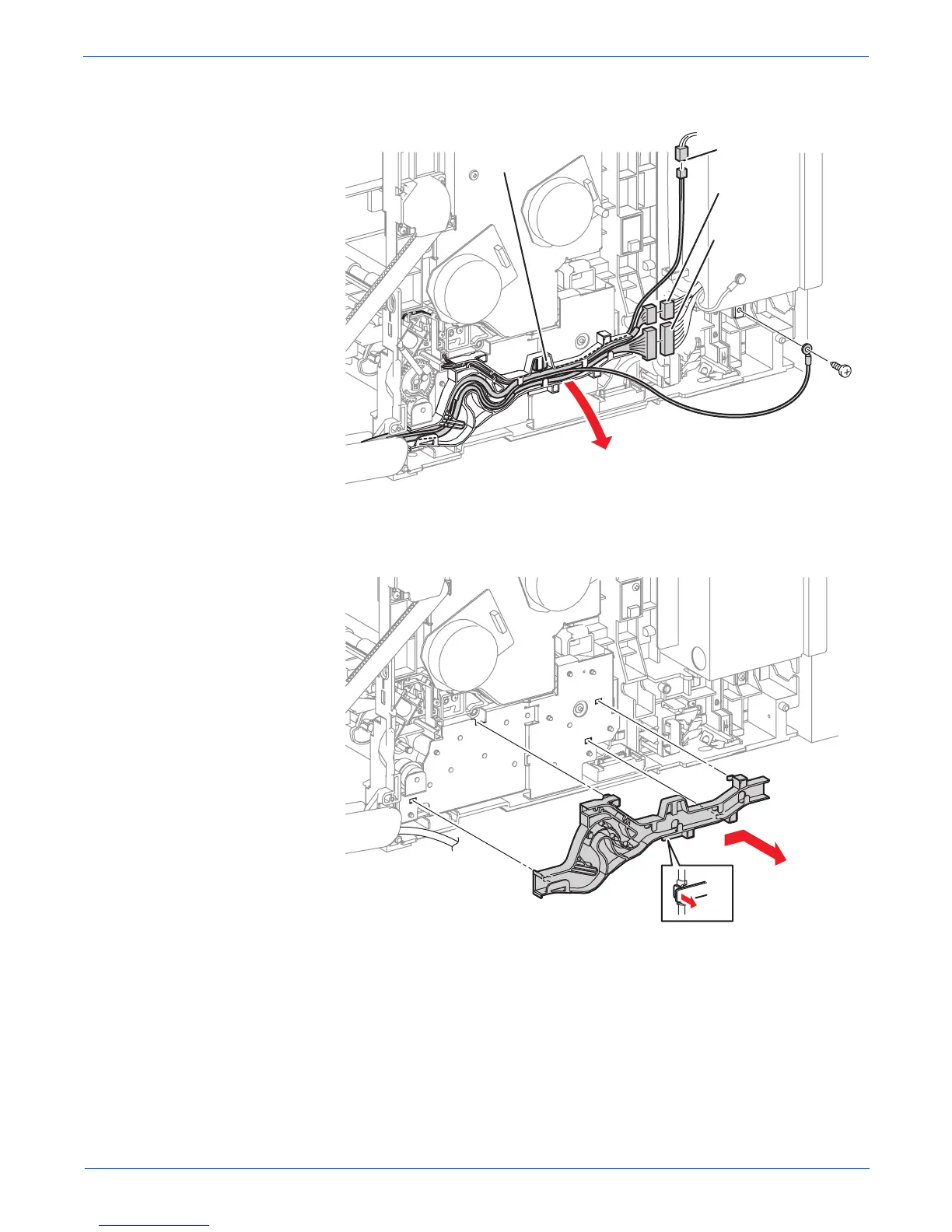

10. Disconnect the wiring harnesses and release the wiring harnesses from
the Drive Duct (PL8.1.8).
11. Release the hook of the Drive Duct from the Feed Drive Assembly. Shift
the Drive Duct toward the rear side of the printer and remove it from the
Feed Drive Assembly.
s6180mfp-423
P/J5301
P/J272
P/J275
P/J236
s6180mfp-308
To Next Page
