Xerox Phaser 6180MFP Service Manual

Phaser 6180MFP Multifunction Printer Service Manual 10-47
Plug/Jack and Wiring Diagrams

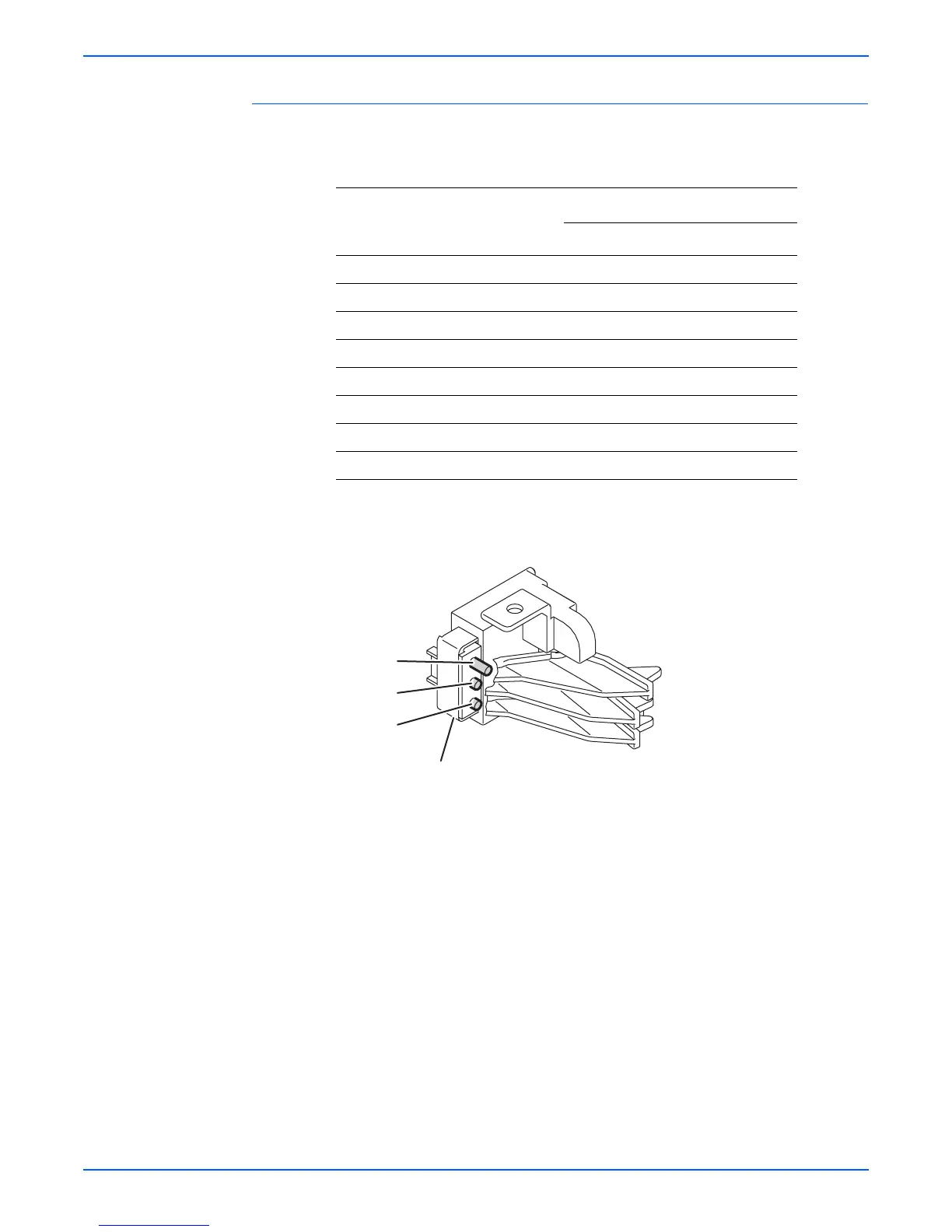

Outline of Optional Size Switch
The paper size is determined by a combination of the On/Off statuses of the
SW 1, SW 2, and SW 3 switches of Optional Size Switch.
N
o
t
e
The Actuator is pushing the Size Switch.
Paper Size
Switches
SW 1 SW 2 SW 3
Letter (SEF) Off Off On
A4 (SEF) Off On On
A5 Off On Off
B5 (SEF) On Off Off
Legal 13” (SEF) On On Off
Legal 14” (SEF) On On On
Executive (SEF) On Off On
No Tray Off Off Off
Switch 1
Switch 2
Switch 3
Size Switch
s6180mfp-062

Xerox Phaser 6180MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Duplex Printing	Manual
Scan Type	Flatbed, ADF
Fax Capability	Yes
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	500 sheets
Max Paper Size	8.5 x 14 in
Connectivity	USB 2.0, Ethernet
Scan Resolution	1200 x 1200 dpi
Supported Paper Sizes	Letter, Legal, Executive, A4, A5, B5
Operating System Compatibility	Windows, Mac OS, Linux
Maximum Print Resolution	600 x 600 dpi
