Xerox Versant 280 User Manual

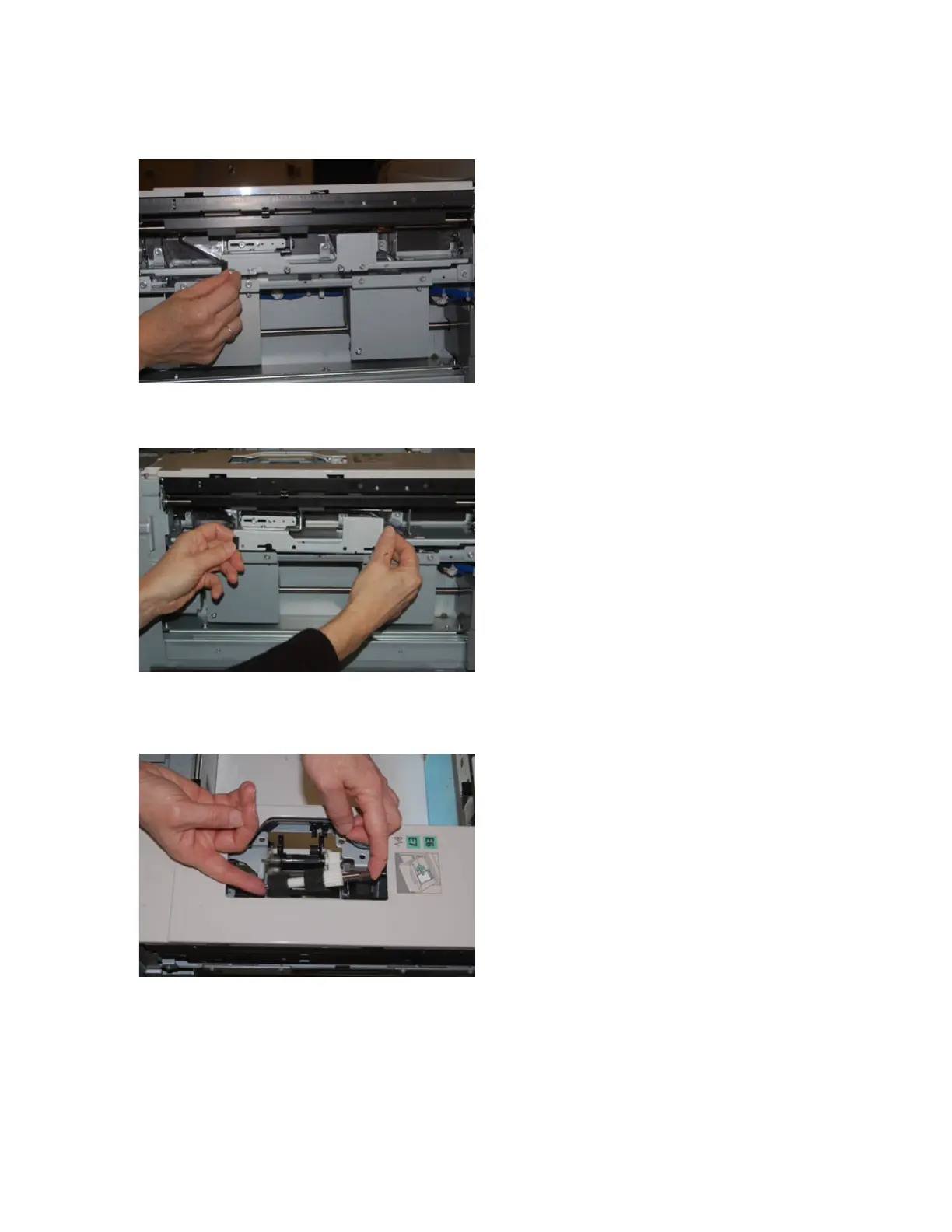

5. Next, remove the separator roll assembly at the side of the feeder tray to access the separator roll. Unscrew the
3 thumbscrews.
6. Slide the separator assembly all the way to the left so it is out of the slots. Pull the assembly out towards you
until completely removed from the tray. Set aside.
7. With the separator assembly out, access and remove the feed roll. To remove, squeeze both ends of the metal
shaft and lift out. To replace, squeeze both ends of the new roll shaft, then insert and release the roll ends into
the notches.
Xerox
®
Versant
®
280 Press User Documentation 247
Working With

Xerox Versant 280 Specifications

General

Brand	Xerox
Model	Versant 280
Category	Power Tool
Language	English
