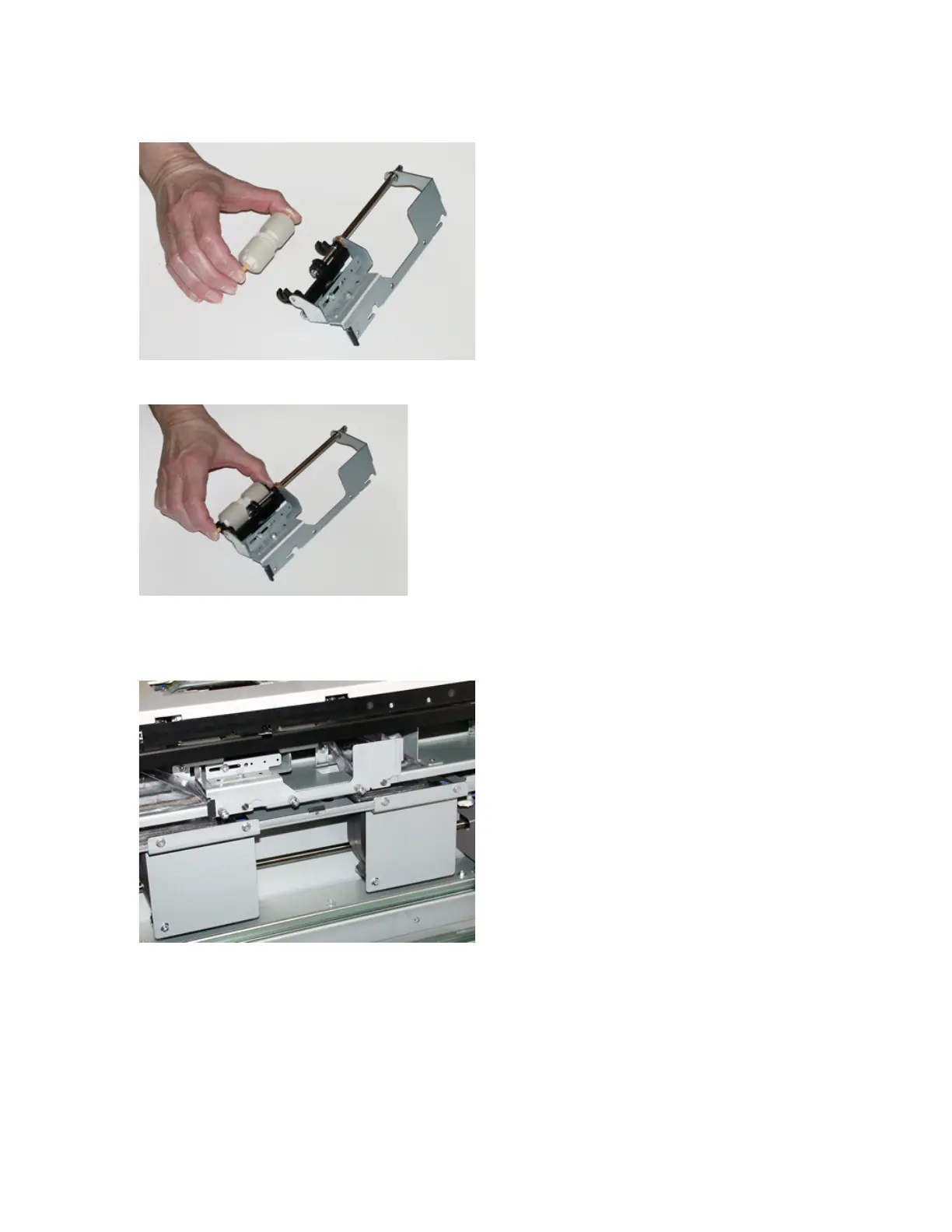

8. Finally, replace the separator roll. Squeeze the orange shafts of the separator roll and lift out of the assembly.
9. Replace a new separator roll into the black notches of the assembly using the same technique.
10. Reinstall the separator assembly into the tray. Align the cutout holes of the assembly with the frame of the tray
so the pin holes match up. Insert the assembly into the frame. Slide the assembly all the way to the right using
the pin as a guideline. Ensure the device is all the way into the slots and the 3 screw areas align.
11. Screw in the 3 thumbscrews to attach the assembly. Do not overtighten.
12. Close the tray and verify that the tray is operating successfully by feeding paper using that tray.
13. Log in as the administrator or ask the administrator to perform the following steps to reset the HFSI count to
zero (0).
a. At the UI press the Machine Status button.
b. Select the Tools tab.
