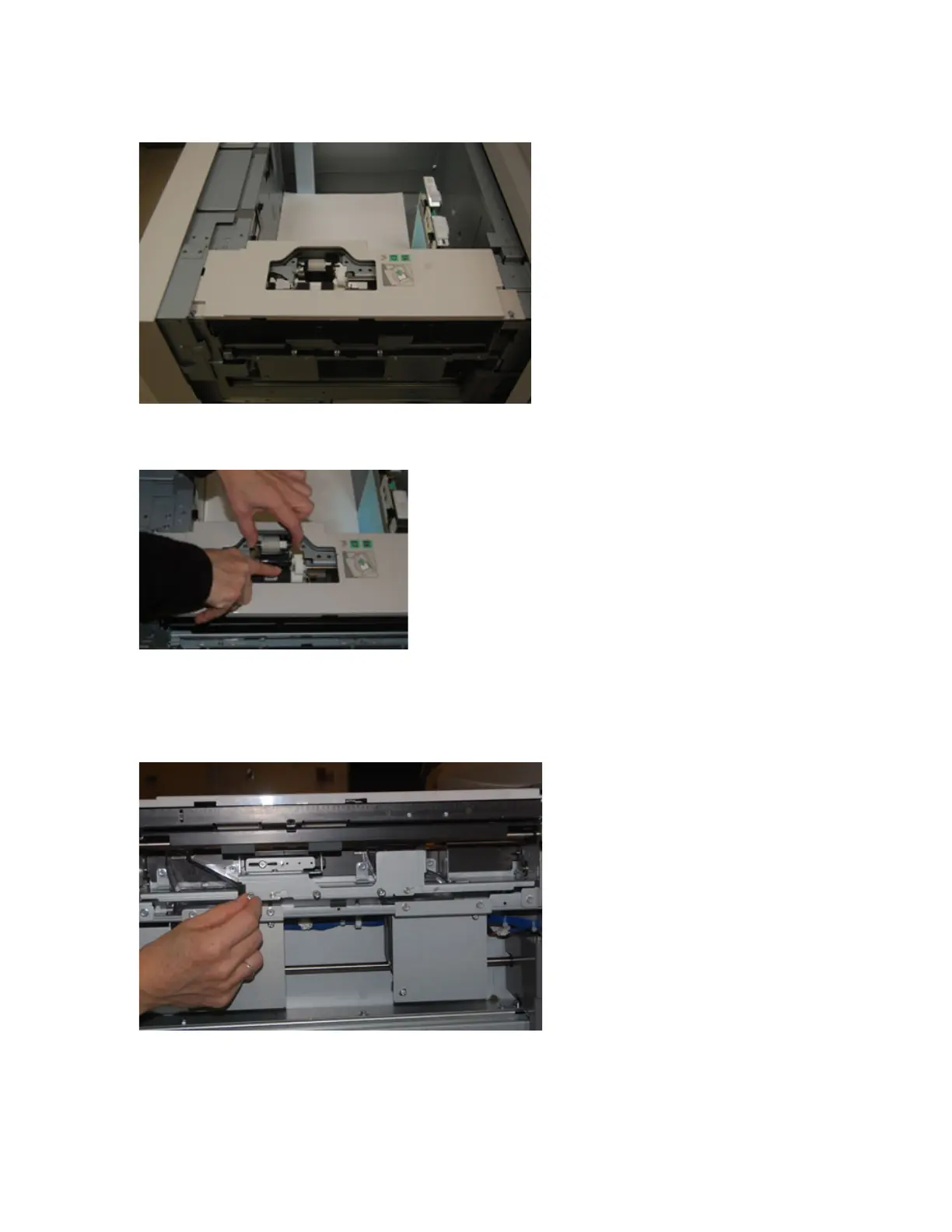

2. Notice the feed roll compartment on the right-side panel of the drawer.
3. Remove the nudger roll by pushing down on the black tab with one hand (which raises the roll upward) and
then squeezing the metal shaft on both ends with your other hand. Lift out the nudger roll.
4. Replace the new roll by squeezing both ends of the metal shaft, and pushing down on the black tab, insert and
release the roll ends into the notches.
5. Next, remove the separator roll assembly at the side of the feeder tray to access the separator roll. Unscrew the
3 thumbscrews.
252 Xerox
®
Versant
®
280 Press User Documentation
