Site Preparation and Installation
32 Magellan™ 9800i Scanner

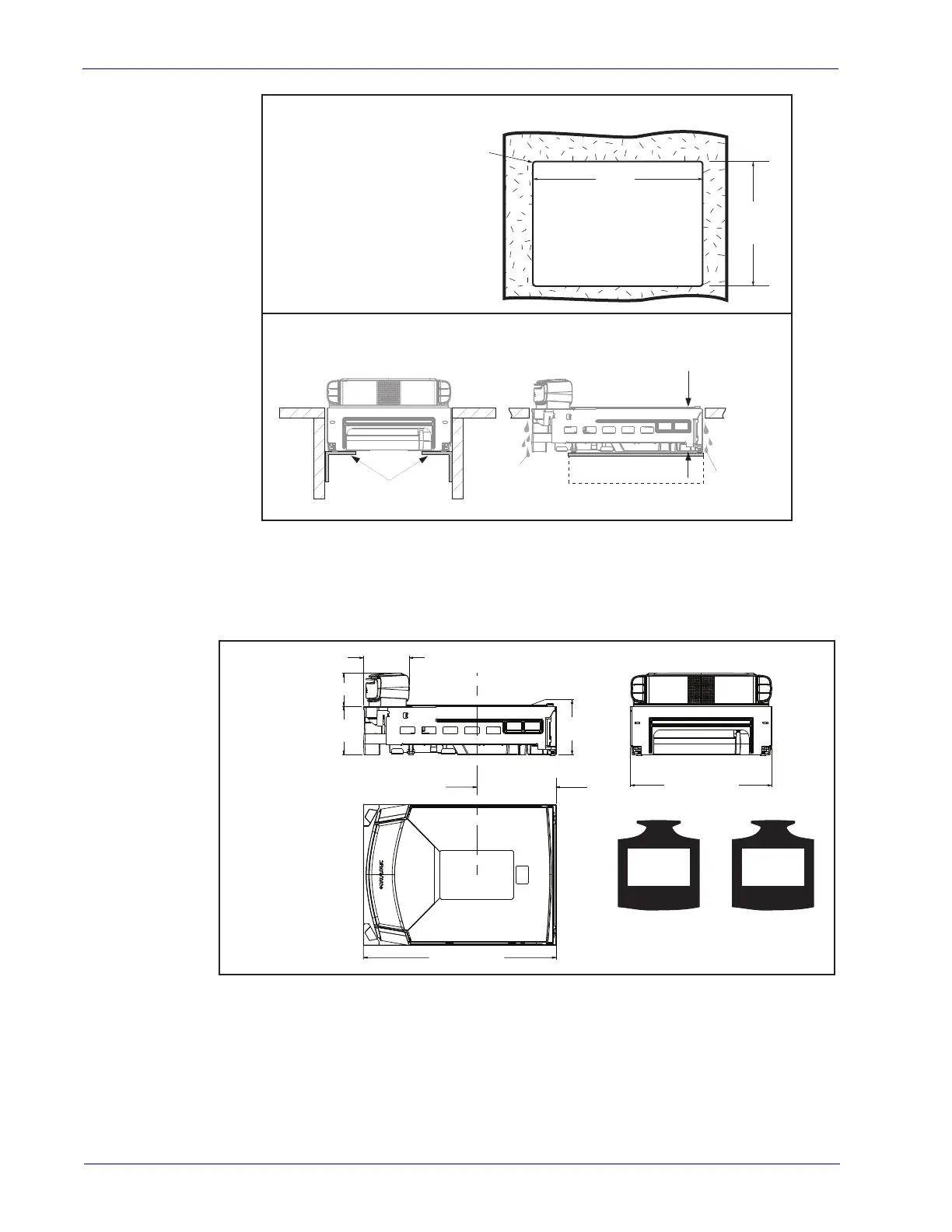

Figure 19. Models 9803 and 9804 (Medium Scanner or Scanning-Scale) Cutout Dimensions
Models 9803 and 9804 (Medium Shelf)
Minimum Cutout
Dimensions
11.625"
(29.53cm)
min.
Max. Radius = 0.25"
(0.635cm) 4x
15.825"
(40.2cm)
min.
Models 9803 and 9804 (Medium Shelf)
Supports
Liquid
Drainage
Liquid
Drainage
Support Rails
10.36cm (4.08")
Figure 20. Models 9803 and 9804 (Medium Scanner or Scanning-Scale) Reference Dimensions
Model 9803
& Model 9804
Reference
Dimensions
8.6 kg
(19.0 lb)
Scanner/Scale
Weight
6.8 kg
(15.0 lb)
Scanner
Weight (w/o scale)
29.21cm (11.5”)
39.9cm (15.71”)
16.44cm (6.47”)
10.06cm
(3.96”)
6.9cm (2.72”)
9.46cm
(3.72”)
10.36cm
(4.08”)
Window
C
L
TDR adds 0.3 kg (0.75 lb)

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
