Calibration Procedures
86 Magellan™ 9800i Scanner
Shift Test Metric (2 Kilogram Dual Interval ONLY)
The Shift Test checks to ensure that items placed anywhere on the weighing surface of the
scanner/scale are weighed properly. Refer to Figure 54 when performing this test.
DUAL INTERVAL
1. Place and remove, in succession, a 2 kilogram
load on the center of each of the four quadrants:
2, 3, 4, and 5, and in the center (1) of the scan-
ner/scale’s weighing platform (see Figure 54).
Verify that the Remote D
isplay shows a reading
of between 1.998 and 2.002 kg for each quad-
rant/center test. Check that the display
returns to
0.000 between each load.
2. After verifying the accuracy of each quadrant
and the center of the weighing surface, remove
all weight from the scale. This completes the
Shift Test Metric (2 Kilogram).

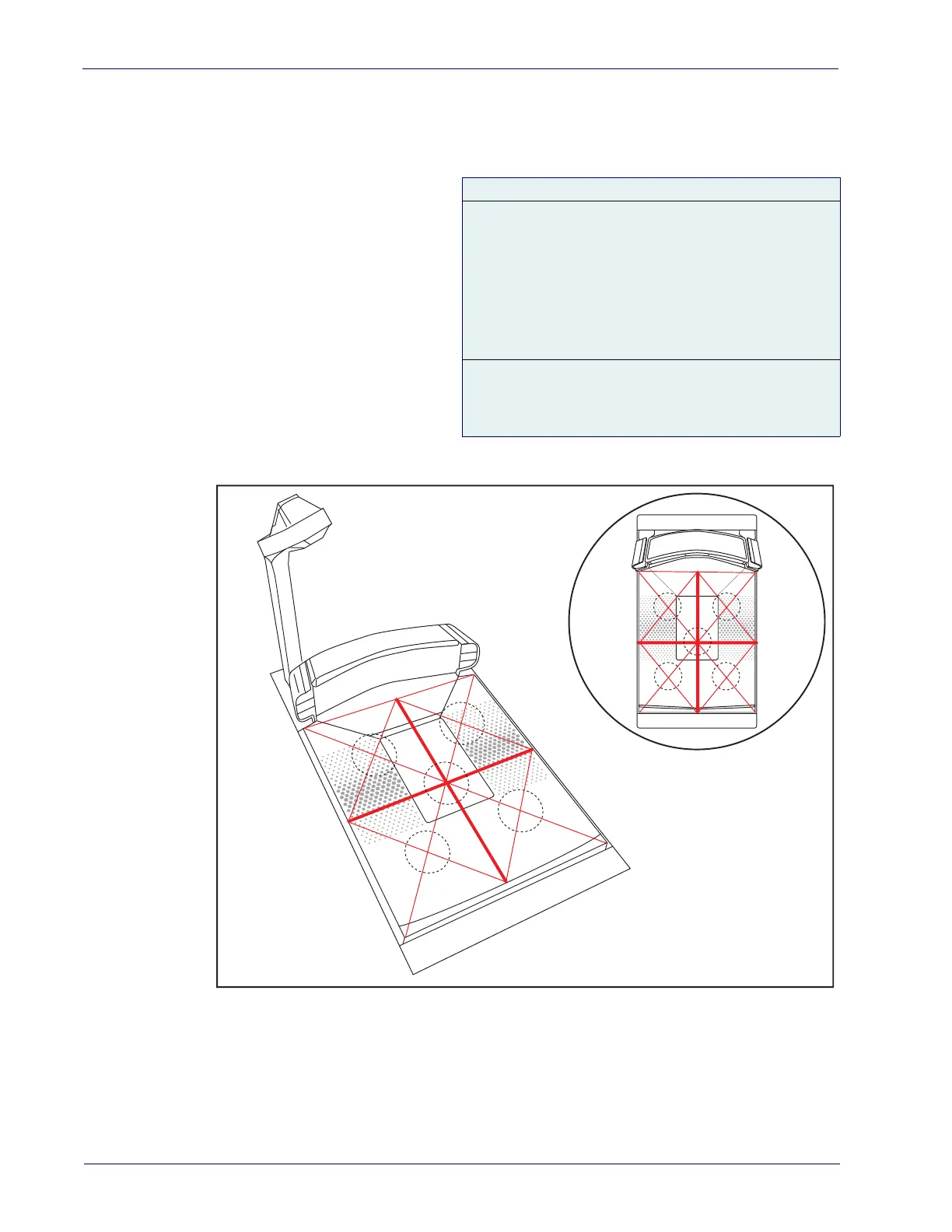

Figure 54. Metric Shift Test
(Models vary)
2
1
3
5
4
23
45
1

Datalogic Magellan 9800i Specifications

General

Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Power consumption (typical)	12 W
Standard interfaces	RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Built-in display	No

Weight and Dimensions

Weight	- g
